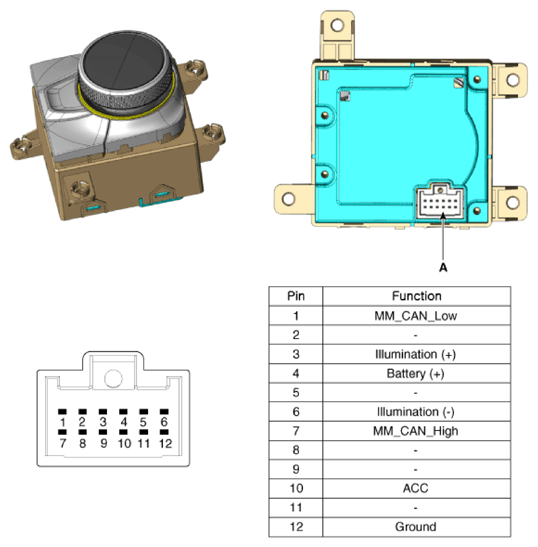

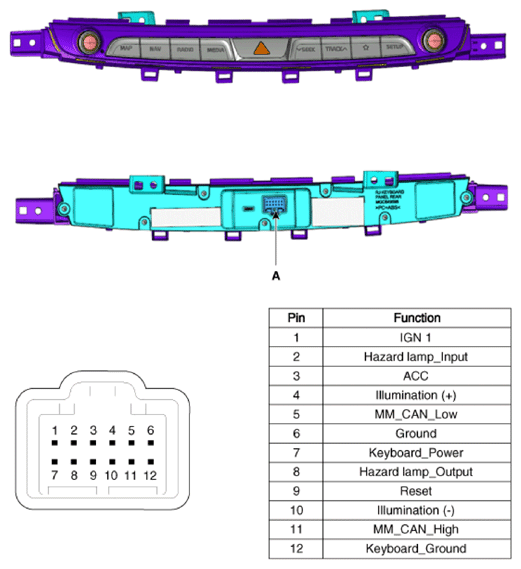

Home >> Kia >> 2020 >> K900 >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Video/Navigation (AVN) System >> Front Keyboard Unit >> Schematic Diagrams >> Connector And Terminal Function
