Crash pad side

  1. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

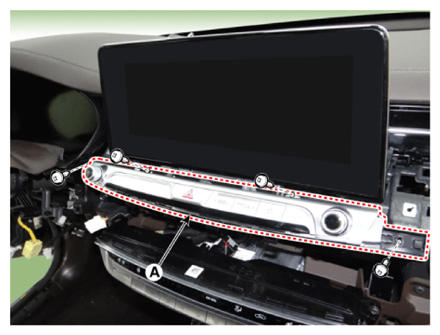

  2. Remove the keyboard unit (A) by loosening the screws.
    G13128426Courtesy of KIA MOTORS AMERICA, INC.

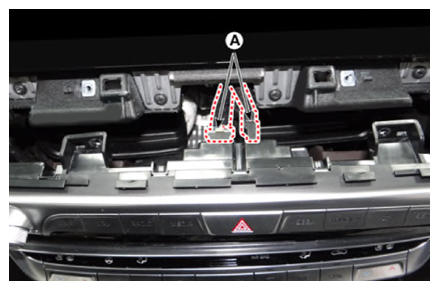

  3. Disconnect the connector (A) from the keyboard unit.
    G13128427Courtesy of KIA MOTORS AMERICA, INC.
