Front Keyboard Unit
>>
Repair Procedures
>>
Removal
>>
Console side
Console side
Remove the E-shifter.
(Refer to Automatic Transmission System - "
E-SHIFTER
")

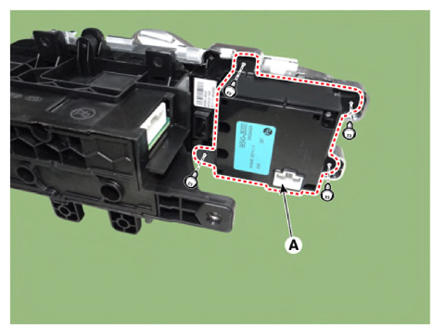

Remove the keyboard unit (A) by loosening the screws.
Courtesy of KIA MOTORS AMERICA, INC.
