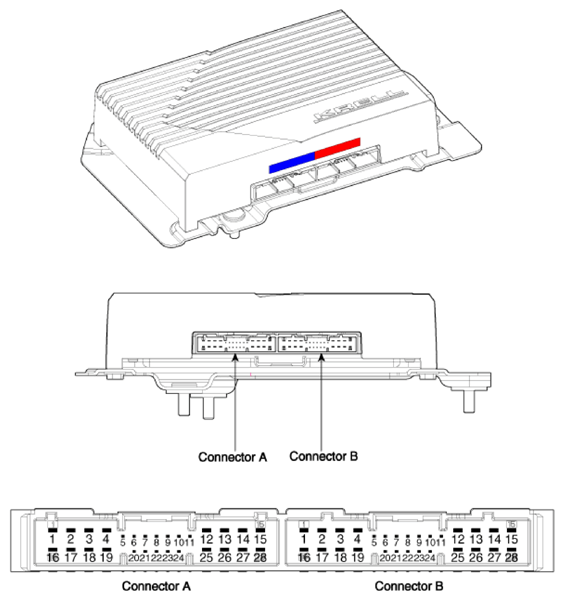

| 1 |
Battery (+) |
Rear door left speaker (+) |
| 2 |
Battery (+) |
Rear door left speaker (-) |
| 3 |
Battery (+) |
Rear door right speaker (+) |
| 4 |
Battery (+) |
Rear door right speaker (-) |
| 5 |
- |
- |
| 6 |
Multimedia-CAN (High) |
- |
| 7 |
Multimedia-CAN (Low) |
- |
| 8 |
ACC |
- |
| 9 |
Amplifier navigation voice (+) |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
Front door left speaker (+) |
Left surround speaker (+) |
| 13 |
Front door left speaker (-) |
Left surround speaker (-) |
| 14 |
Front door right speaker (+) |
Right surround speaker (+) |
| 15 |
Front door left speaker (-) |
Right surround speaker (-) |
| 16 |
Ground |
Subwoofer speaker 1 (+) |
| 17 |
Ground |
Subwoofer speaker 1 (-) |
| 18 |
Ground |
Front center speaker (+) |
| 19 |
Ground |
Front center speaker (-) |
| 20 |
Amplifier SPDIF (+) |
- |
| 21 |
Amplifier SPDIF (-) |
- |
| 22 |
Amplifier shield (Ground) |
- |
| 23 |
Amplifier navigation voice (-) |
- |
| 24 |
IGN1 |
- |
| 25 |
Front door left tweeter speaker (+) |
Left mid range speaker (+) |
| 26 |
Front door left tweeter speaker (-) |
Left mid range speaker (-) |
| 27 |
Front door right tweeter speaker (+) |
Right mid range speaker (+) |
| 28 |
Front door right tweeter speaker (-) |
Right mid range speaker (-) |
