Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "REAR TRANSVERSE TRIM ")

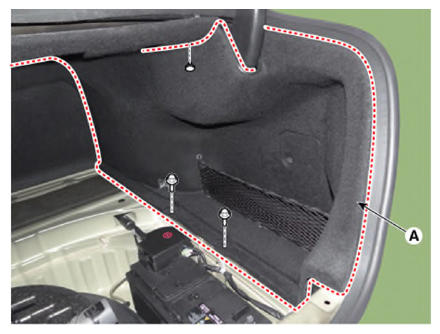

  3. Separate the luggage side trim (A) by loosening the bolts and clip.
    G13128457Courtesy of KIA MOTORS AMERICA, INC.

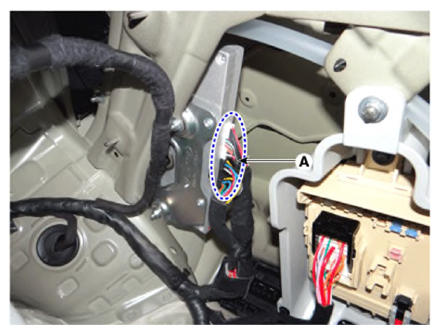

  4. Disconnect the connectors (A) from the amplifier.
    G13128458Courtesy of KIA MOTORS AMERICA, INC.

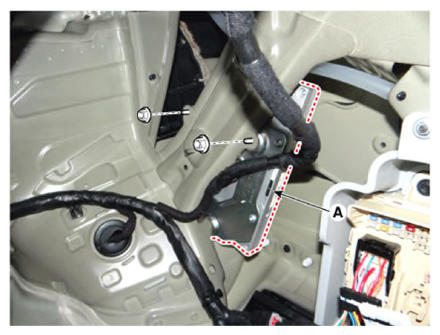

  5. Remove the amplifier (A) after loosening the nuts.
G13128459Courtesy of KIA MOTORS AMERICA, INC.
