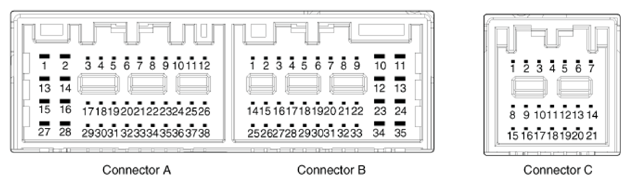

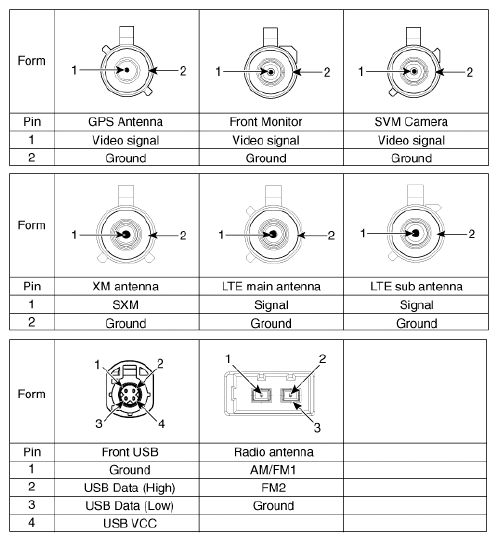

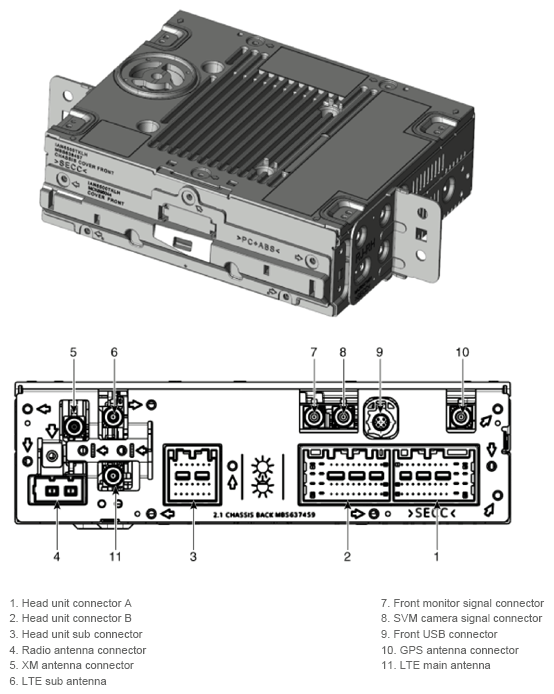

Connector and Terminal Function
| Pin | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | MIC 2 (+) | - |
| 2 | - | MIC 1 (+) | I_CAN_High |
| 3 | Navigation voice (+) | MIC 1_Shield | - |
| 4 | Amplifier SPDIF (+) | Front monitor ground_Detect | - |
| 5 | HARD KEY_Reset | - | - |
| 6 | Camera_Power | Illumination (+) | - |
| 7 | Camera video signal | MM_CAN_High | - |
| 8 | - | - | - |
| 9 | - | - | I_CAN_Low |
| 10 | - | Battery (+) | - |
| 11 | Front USB_Detect | Battery (+) | - |
| 12 | - | Ground | - |
| 13 | - | Ground | - |
| 14 | - | MIC 2 (-) | - |
| 15 | - | MIC 1 (-) | - |
| 16 | - | MIC 2_Shield | MTS_Key |
| 17 | Navigation voice (-) | - | MTS_Key_ground |
| 18 | Amplifier SPDIF (-) | - | - |
| 19 | Amplifier SPDIF ground | Illumination (-) | - |
| 20 | - | MM_CAN_Low | - |
| 21 | Camera video signal | - | - |
| 22 | - | ACC | |
| 23 | - | Keyboard power | |
| 24 | - | Front monitor power | |
| 25 | - | Reverse | |
| 26 | - | - | |
| 27 | - | - | |
| 28 | - | - | |
| 29 | - | - | |
| 30 | - | - | |
| 31 | - | - | |
| 32 | SVM | - | |
| 33 | Camera_VIN_Shield | IGN1 | |
| 34 | - | Keyboard ground | |
| 35 | - | Front monitor ground | |
| 36 | - | ||
| 37 | - | ||
| 38 | Speed |
