Repair Procedures: Removal

NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Disconnect the negative (-) battery terminal.
Remove the heater & A/C control unit.
(Refer to Heating, Ventilation and Air Conditioning - "HEATER AND A/C CONTROL UNIT ")

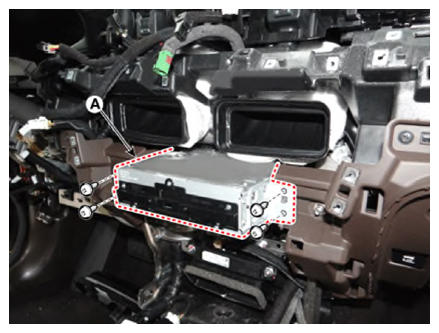

Remove the AVN head unit (A) by loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.

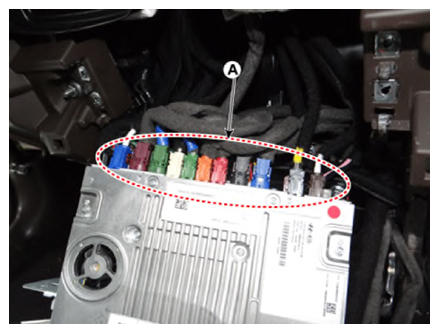

Remove the connectors (A) from the AVN head unit.

Courtesy of KIA MOTORS AMERICA, INC.
