Repair Procedures: Removal

  1. Remove the front key board unit.

    (Refer to AVN System - "FRONT KEYBOARD UNIT ")

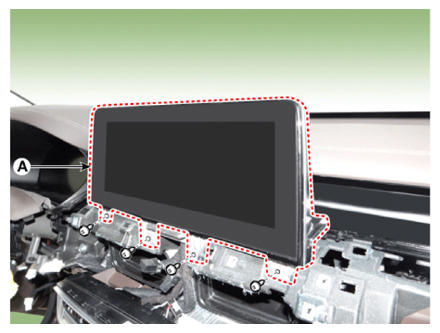

  2. Remove AVN monitor (A) after loosening the screws.
    G13128421Courtesy of KIA MOTORS AMERICA, INC.

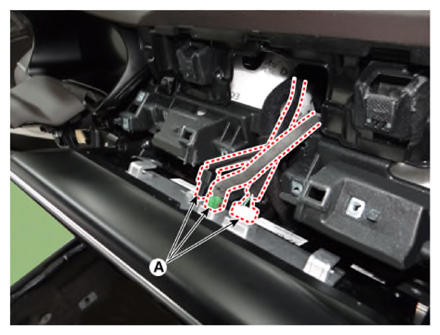

  3. Disconnect the connectors (A) from the monitor.
G13128422Courtesy of KIA MOTORS AMERICA, INC.
