Repair Procedures: Inspection

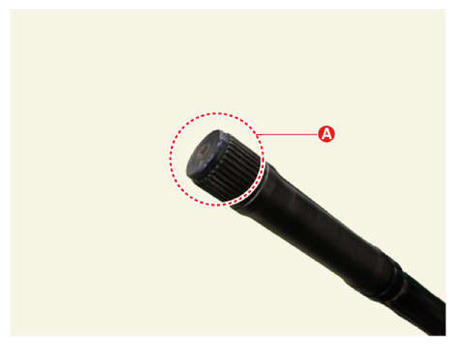

  1. Check spline (A) for damage/wear/crack.
    G13304336Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the boot for water or foreign objects.
  3. Check joint assembly for damage/wear/crack and rust.
  4. Replace any defective parts.
