Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear wheel house trim.
(Refer to Interior Trim - "REAR WHEEL HOUSE TRIM ")

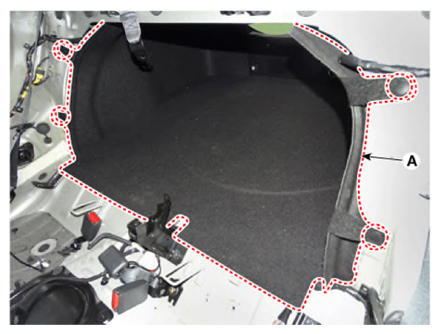

Loosen the clips, remove the luggage side trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

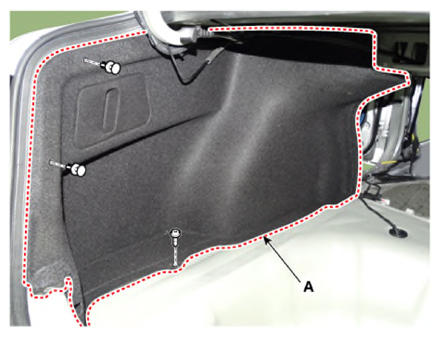

After loosening the mounting clips and screws, remove the luggage side trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin - type retainers).
