Remove And Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder head assembly.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD ")

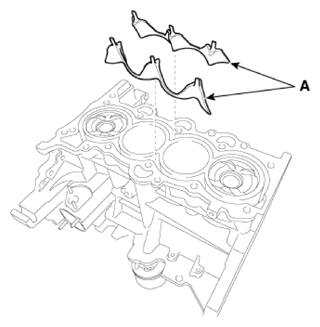

  2. Remove the water jacket separator (A).
    G13303162Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to deform or damage it when removing.
  3. Install in the reverse order of removal.
