Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Remove the manual transaxle assembly.
(Refer to Manual Transaxle System - "MANUAL TRANSAXLE ")

(Refer to DCT (Double Clutch Transmission) System - "DCT (DOUBLE CLUTCH TRANSMISSION) "
Remove the clutch cover.
(Refer to Clutch System - "CLUTCH COVER AND DISC ")

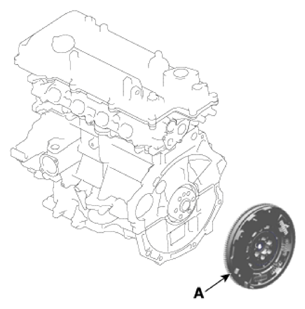

Manual Transaxle: Remove the flywheel (A).
Tightening torque:

71.5 - 75.5 N.m (7.3 - 7.7 kgf.m, 52.8 - 55.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

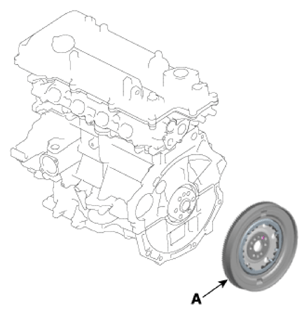

Dual clutch Transmission (DCT): Remove the external damper flywheel (A).

Tightening torque :

71.5 - 75.5 N.m (7.3 - 7.7 kgf.m, 52.8 - 55.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
