Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative (-) cable.
  2. Remove the Integrated central control unit (ICU).

    (Refer to Body Electrical System - "INTEGRATED CENTRAL CONTROL UNIT (ICU) ")

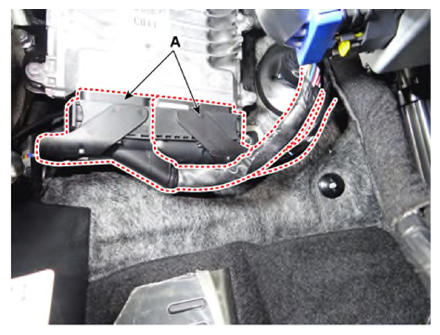

  3. Disconnect the TCM connectors (A).
    G14561142Courtesy of KIA MOTORS AMERICA, INC.

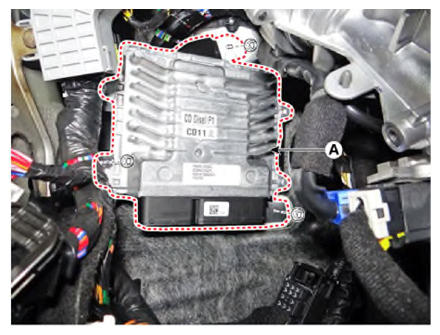

  4. Remove the TCM (A) after loosening the nuts.
    G14561143Courtesy of KIA MOTORS AMERICA, INC.
