Description And Operation: Description: Notes

The sensor used is a thermistor (NTC) in which resistance changes with temperature variation.
When the TCM supplies about 5 V of power to sensor, the sensor output value changes depending on ATF temperature.

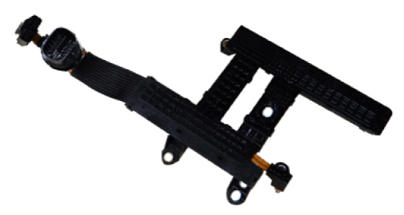

Oil temperature sensor is installed on the valve body and is integrated with main harness.

Courtesy of KIA MOTORS AMERICA, INC.
