Repair Procedures: Removal

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")

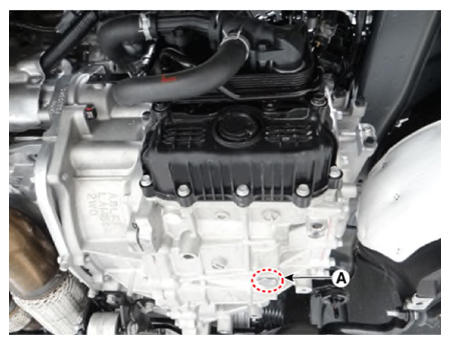

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

33.3 - 43.1 Nm (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

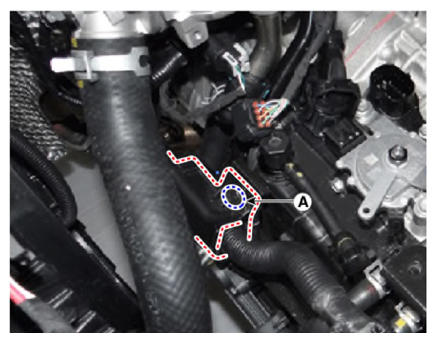

Remove the wiring bracket (A)
Tightening torque:

9.8-11.8 Nm (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

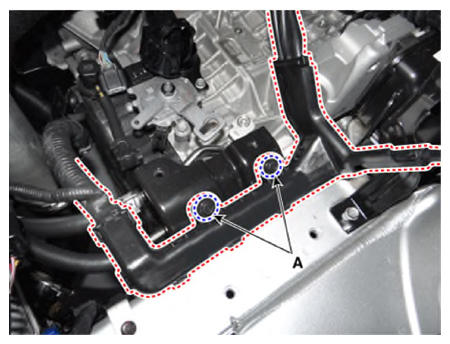

Remove the wiring mounting bolts (A).
Tightening torque:

9.8-11.8 Nm (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

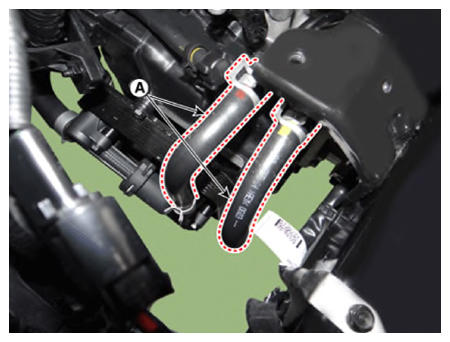

Separate the ATF cooler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

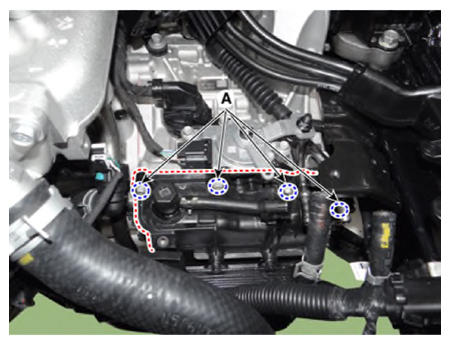

Loosen the valve body cover upper mounting bolts (A).
Tightening torque:

11.8 - 13.7 Nm (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

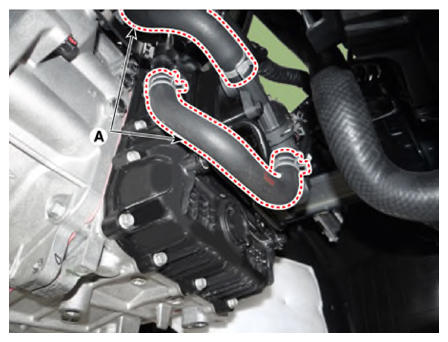

Disconnect the coolant hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

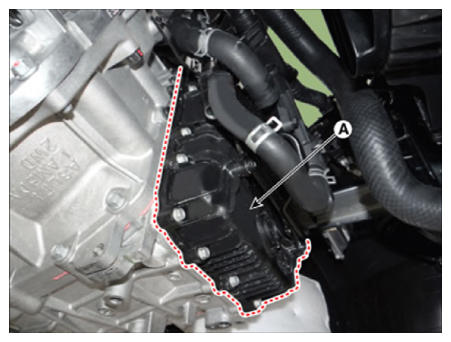

Remove the valve body cover (A) after loosening the lower mounting bolts.
Tightening torque:

11.8 - 13.7 Nm (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

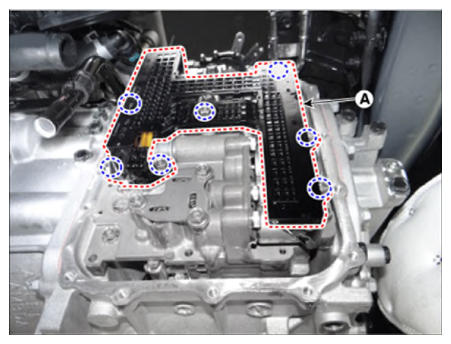

Remove the main harness (A) after loosening the bolts.
Tightening torque:

9.8 - 11.8 N m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

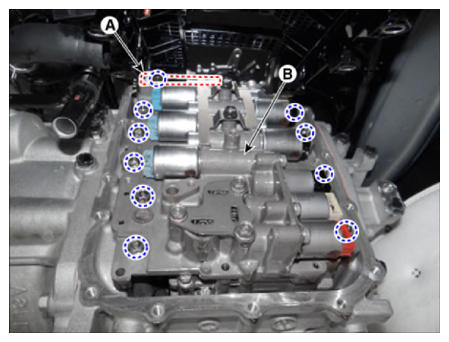

Remove the detent spring (A), then remove the valve body assembly (B) by loosening the bolts.
Tightening torque:
1. 24.5 - 35.3 Nm (2.5 - 3.6 kgf.m, 18.1 - 26.0 lb.ft)
2. 9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
