Oil Pressure Characteristics Input

Solenoid valve oil-pressure characteristics input procedure

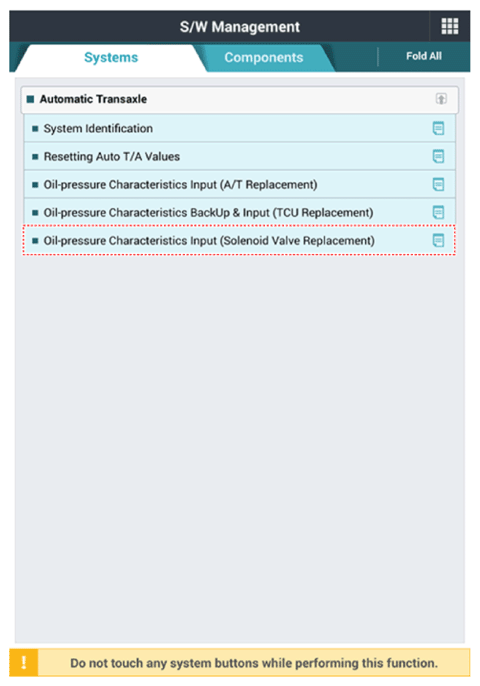

1. Perform the oil-pressure characteristics input procedure using the KDS.

   Courtesy of KIA MOTORS AMERICA, INC.

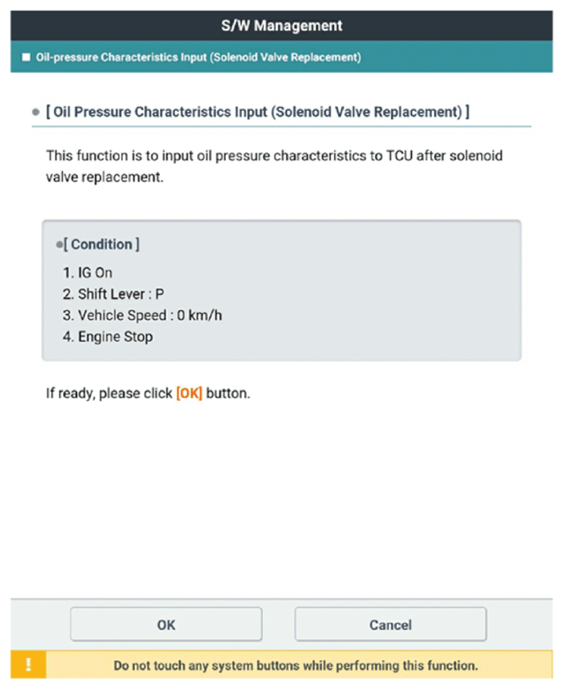

2. Click the "OK" button after checking the condition.

   Courtesy of KIA MOTORS AMERICA, INC.

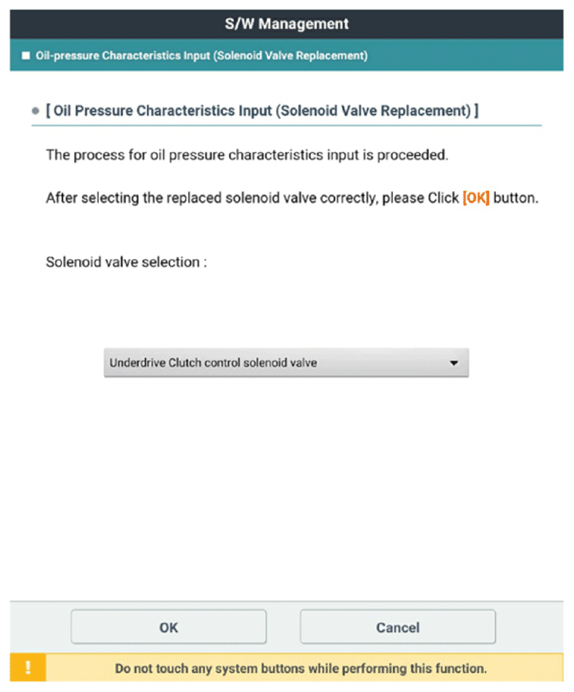

3. Click the "OK" button after selecting the replaced solenoid valve.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Check the code that was recorded before installing the new solenoid valve.

   Courtesy of KIA MOTORS AMERICA, INC.

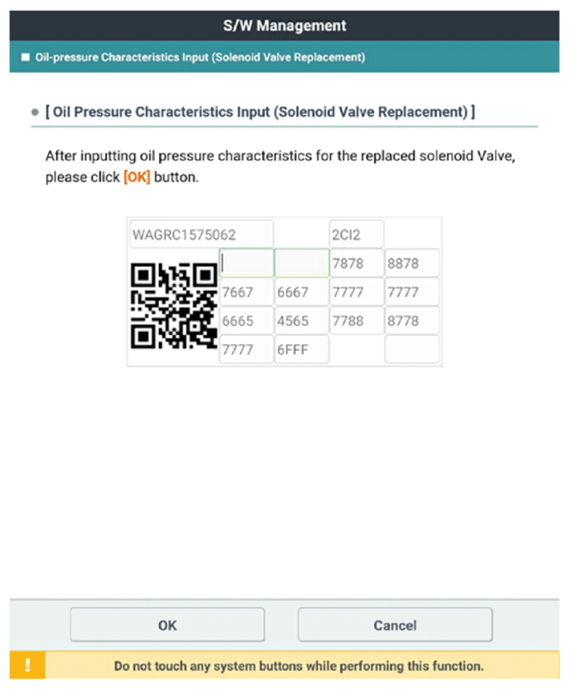

5. Click the "OK" button after inputting oil pressure characteristics for the replaced solenoid valve.

   Courtesy of KIA MOTORS AMERICA, INC.
