Repair Procedures: Removal

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")

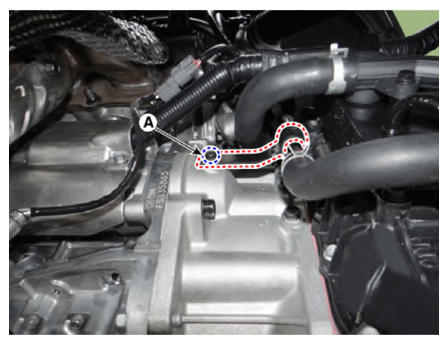

Loosen the coolant pipe mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

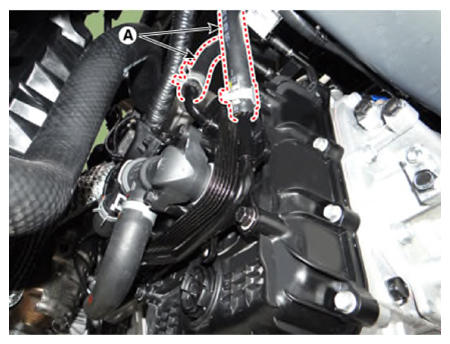

Separate the coolant hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

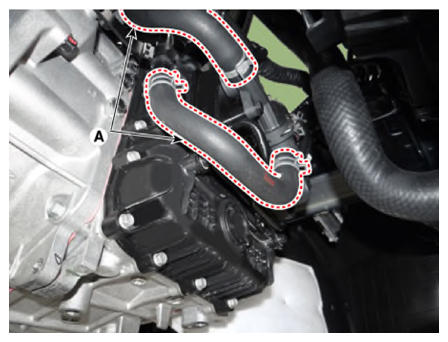

Separate ATF cooler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

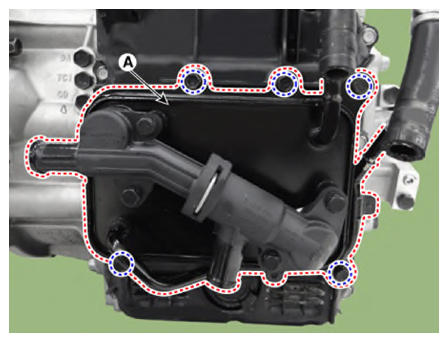

Loosen the ATF warmer (A).
Tightening torque:

9.8-11.8 Nm (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)
