Repair Procedures: Replacement

Disconnect the battery negative cable.
Turn the steering wheel so that the front wheels are facing straight ahead.

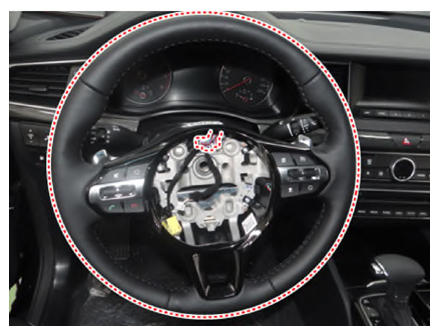

Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Disconnect the connector.

Courtesy of KIA MOTORS AMERICA, INC.

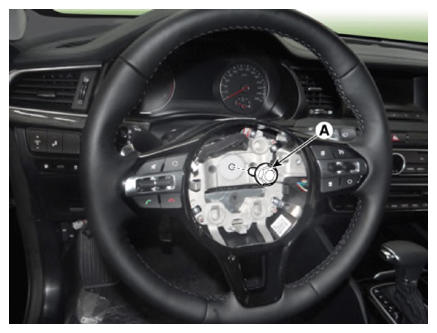

Remove the lock bolt (A) and remove the steering wheel.
Tightening torque:

44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Do not reuse the bolt.

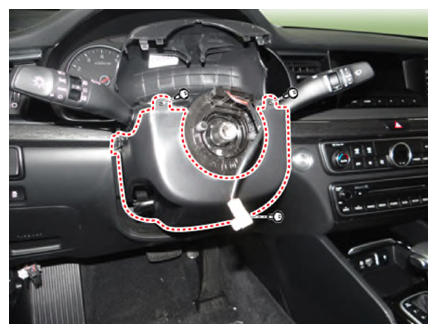

Loosen the shroud upper and lower screw and then remove the shroud.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

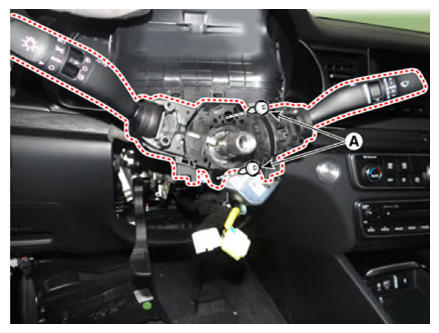

Loosen the screw (A) and disconnect the connector (B) to remove the multifunction switch.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad.
(Refer to Body (Interior and Exterior) - "CRASH PAD ")
Remove the knee airbag.
(Refer to Restraint - "KNEE AIRBAG (KAB) ")

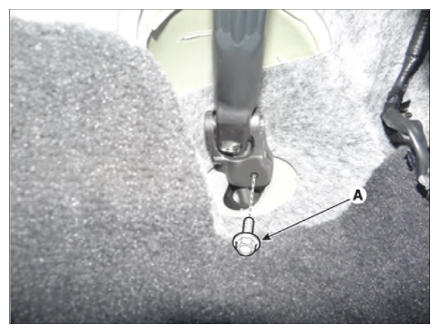

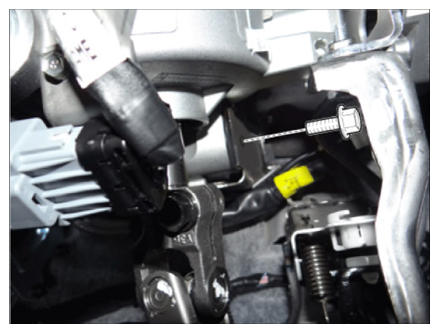

Remove the universal joint bolt (A).
Tightening torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Keep the neutral-range to prevent damaging the clock spring inner cable when steering the wheel.
- Do not reuse the bolt.

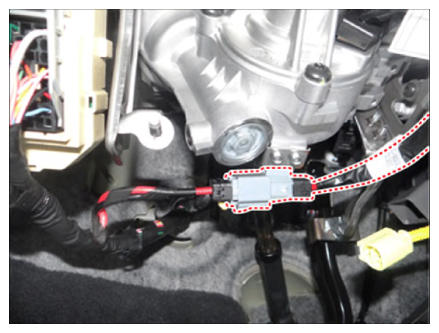

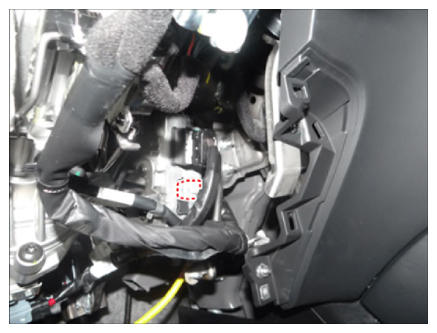

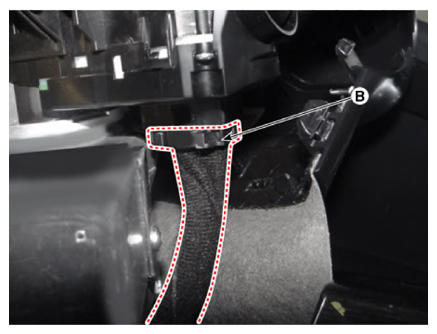

Disconnect the MDPS connector.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

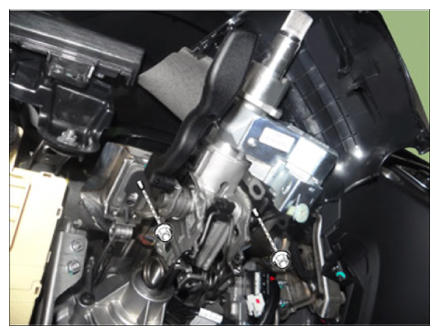

Loosen the steering column nuts.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake switch.
(Refer to Brake System - "STOP LAMP SWITCH ")
Loosen the steering column bolt and then remove the steering column.
Tightening torque:

53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
