Vehicle S/W Management

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

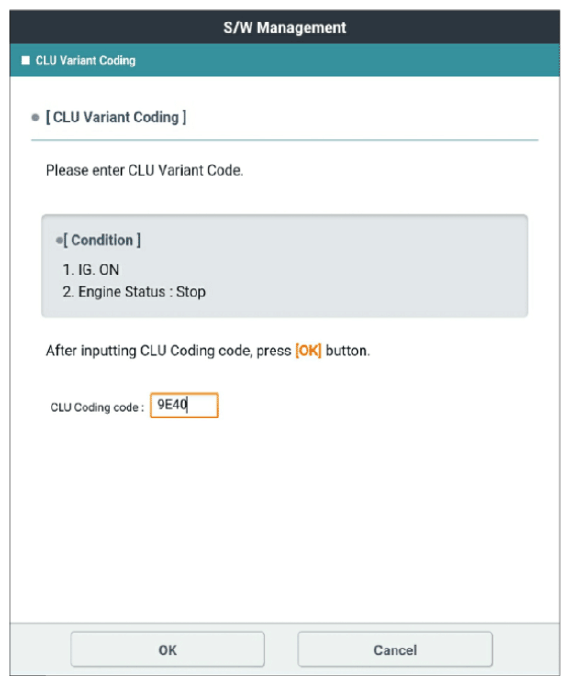

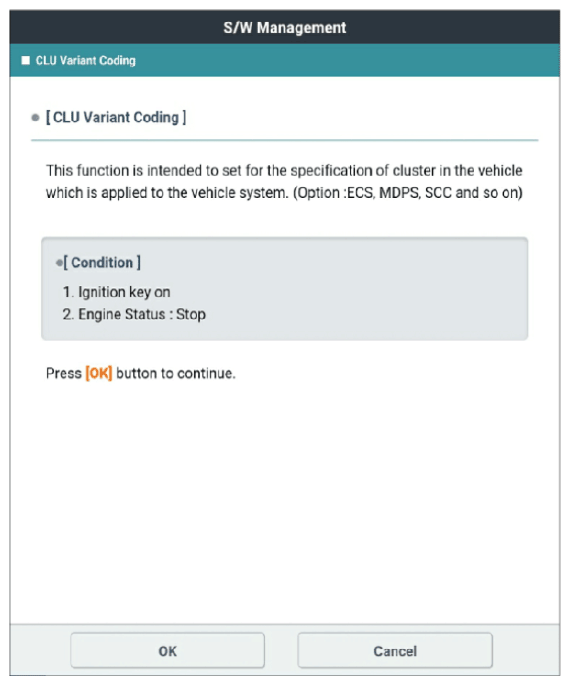

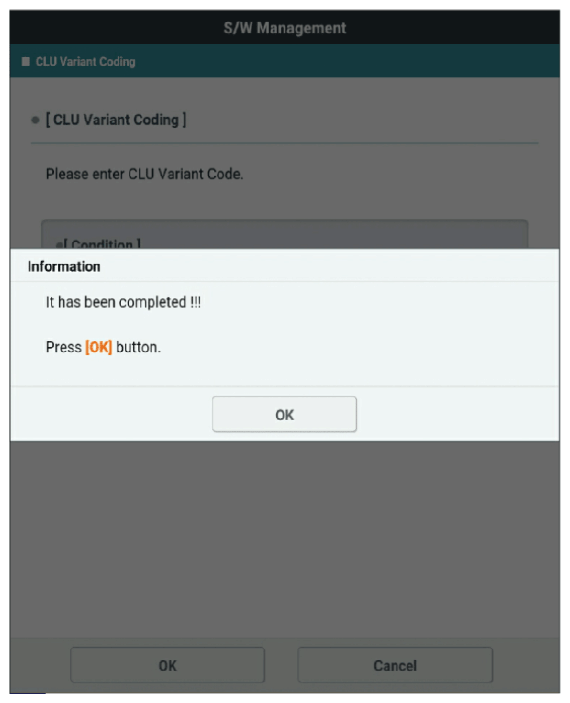

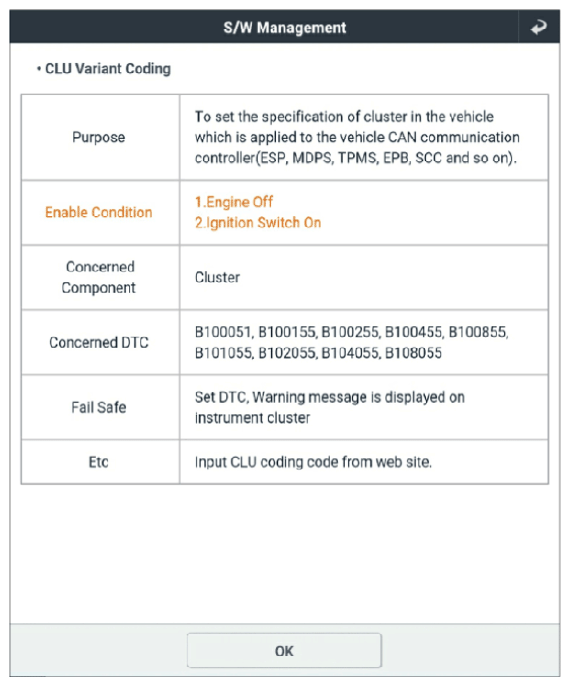

 Fig.1 to 4
G13354439Courtesy of KIA MOTORS AMERICA, INC.
G13354440Courtesy of KIA MOTORS AMERICA, INC.
G13354441Courtesy of KIA MOTORS AMERICA, INC.
G13354442Courtesy of KIA MOTORS AMERICA, INC.
