Write VIN

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON". & engine "ON".
  3. Perform "WRITE VIN" in "Vehicle S/W Management" with KDS.

    Specification:  Refer to Fig.1 to 3 below

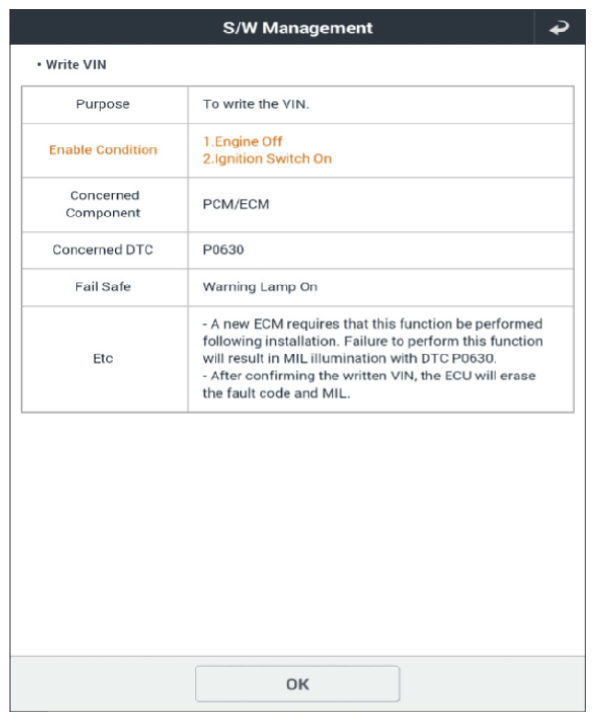

    G13409114Courtesy of KIA MOTORS AMERICA, INC.

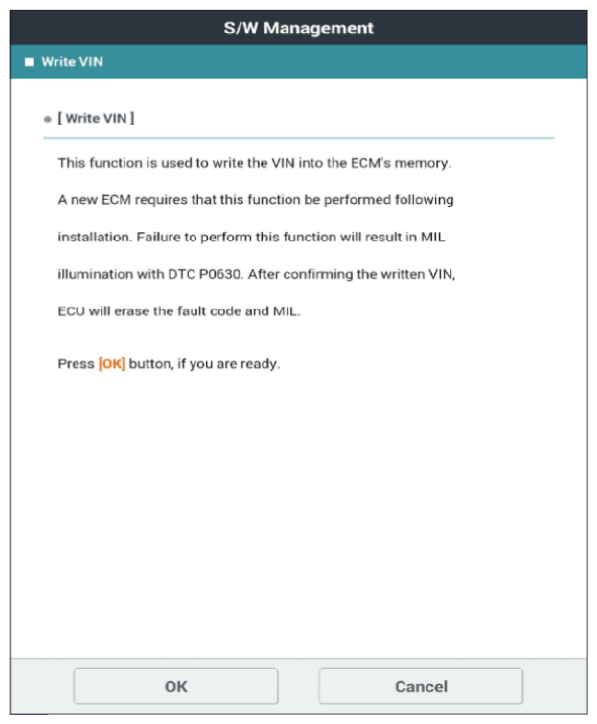

    G13409115Courtesy of KIA MOTORS AMERICA, INC.

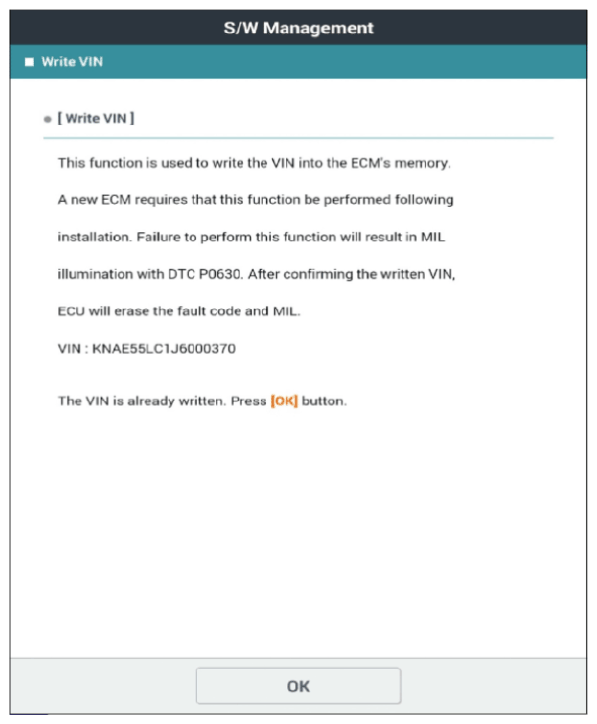

    G13409116Courtesy of KIA MOTORS AMERICA, INC.
  4. Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
