Read VIN

Connect KDS to Data Link Connector (DLC).
Ignition "ON". & engine "ON".
Perform "READ VIN" in "Vehicle S/W Management" with KDS.

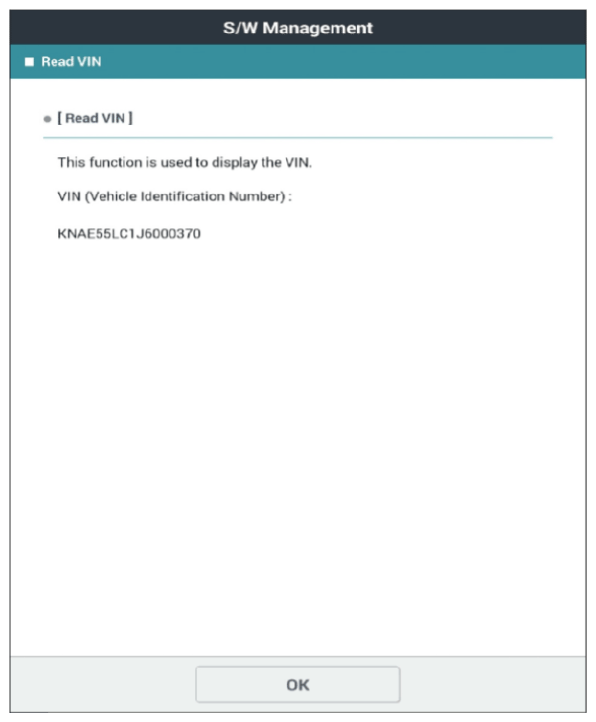

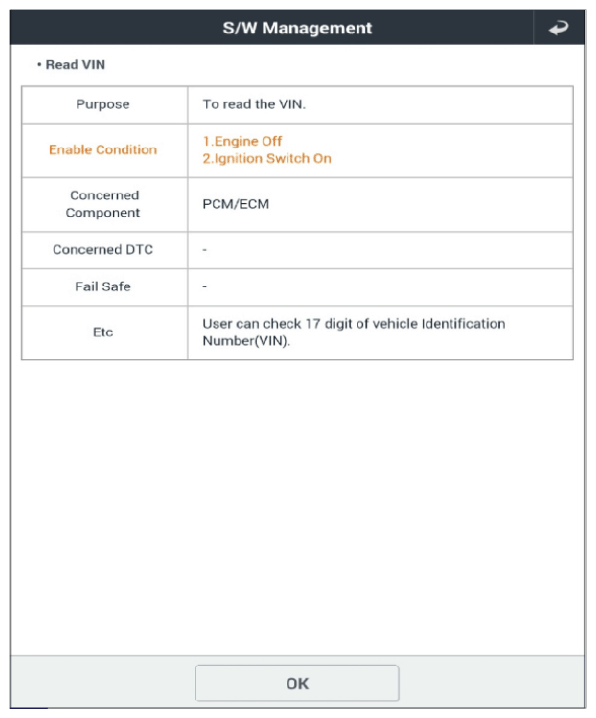

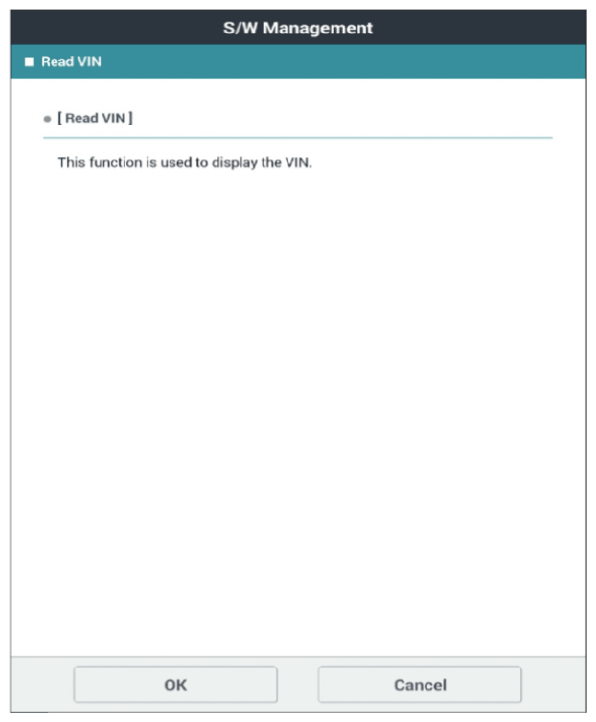

Specification: Refer to Fig.1 to 3 below

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
When the "Read VIN" is finished perfectly?
YES
- Go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "Write VIN " procedure.
