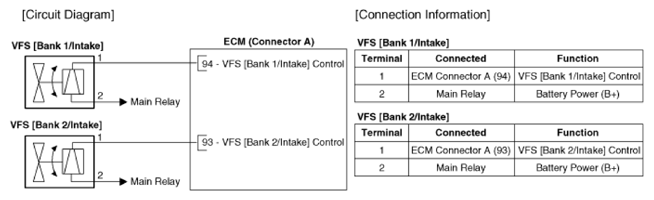

Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Variable Force Solenoid (VFS) >> Schematic Diagrams >> Circuit Diagram
