Repair Procedures: Removal

  1. Set No. 1 cylinder to TDC/compression.

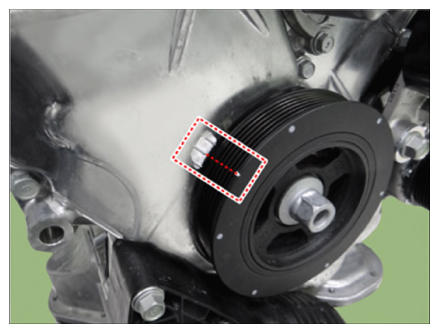

    1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.
      G13403087Courtesy of KIA MOTORS AMERICA, INC.

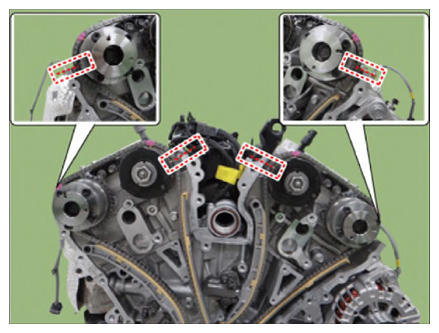

    2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft clockwise one revolution (360°).
      G13403088Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: Do not rotate engine counterclockwise.
  2. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

    NOTE: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.

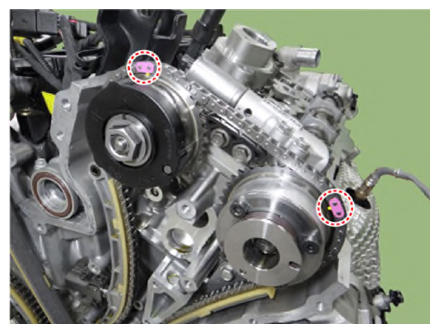

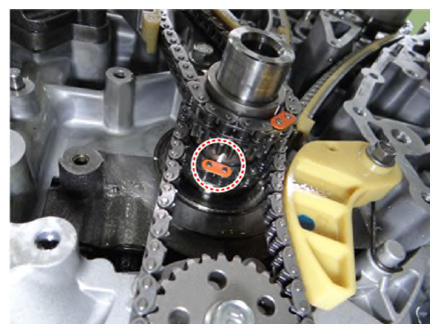

    NOTE: Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.

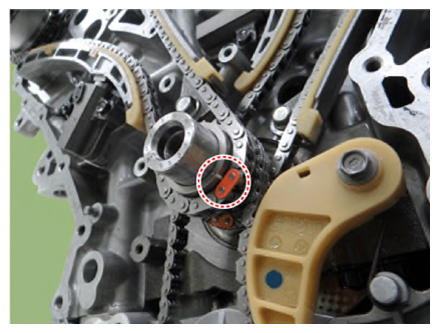

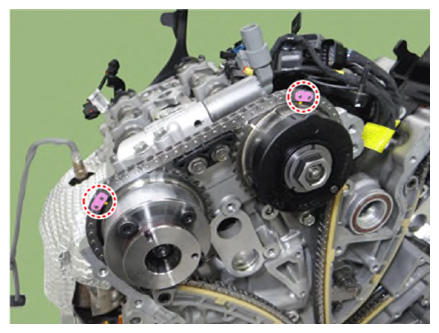

    G13403089Courtesy of KIA MOTORS AMERICA, INC.
    G13403090Courtesy of KIA MOTORS AMERICA, INC.
    G13403091Courtesy of KIA MOTORS AMERICA, INC.
    G13403092Courtesy of KIA MOTORS AMERICA, INC.

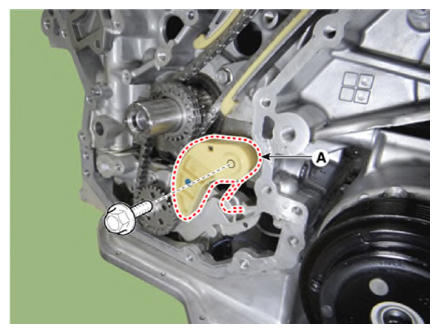

  3. Remove the oil pump chain tensioner assembly (A).
    G13403093Courtesy of KIA MOTORS AMERICA, INC.

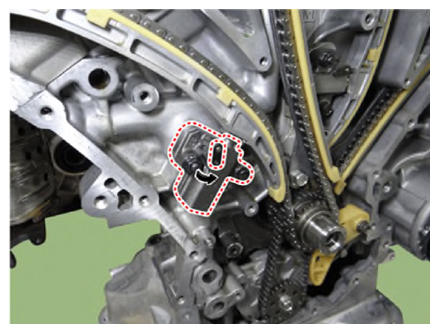

  4. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.
    G13403094Courtesy of KIA MOTORS AMERICA, INC.

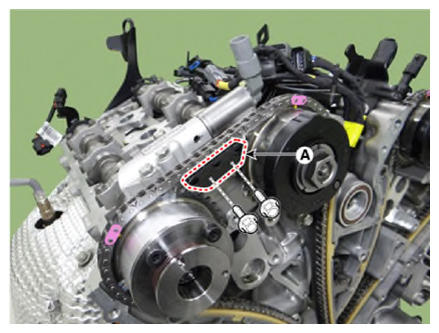

  5. Remove the RH timing chain cam to cam guide (A).
    G13403095Courtesy of KIA MOTORS AMERICA, INC.

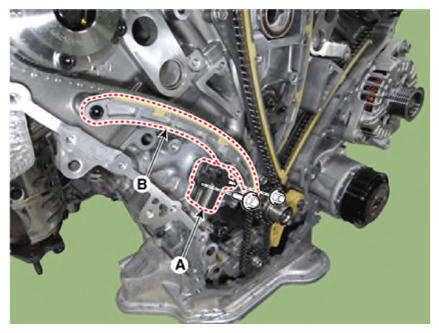

  6. Remove the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).
    G13403096Courtesy of KIA MOTORS AMERICA, INC.

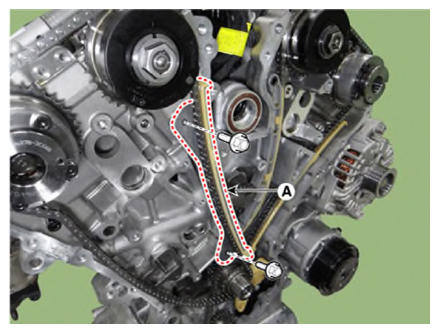

  7. Remove the RH timing chain guide (A).
    G13403097Courtesy of KIA MOTORS AMERICA, INC.

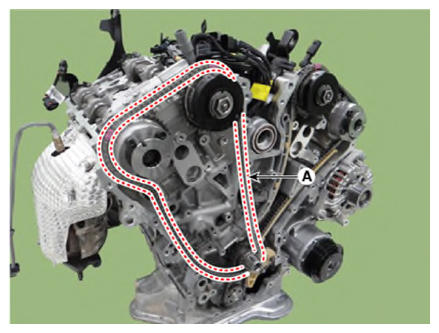

  8. Remove the RH timing chain (A).
    G13403098Courtesy of KIA MOTORS AMERICA, INC.

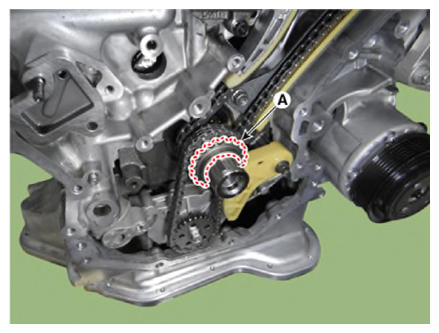

  9. Remove the crankshaft sprocket (A) (RH camshaft drive).
    G13403099Courtesy of KIA MOTORS AMERICA, INC.

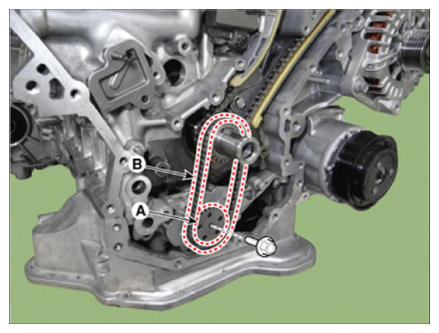

  10. Remove the oil pump chain sprocket (A) and oil pump chain (B).
    G13403100Courtesy of KIA MOTORS AMERICA, INC.

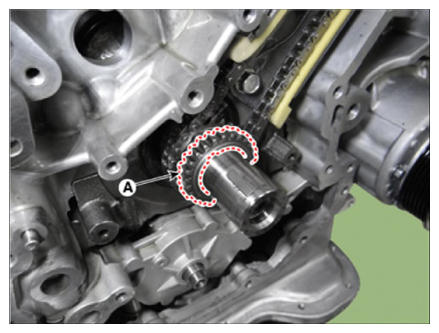

  11. Remove the crankshaft sprocket (A) (Oil pump drive).
    G13403101Courtesy of KIA MOTORS AMERICA, INC.

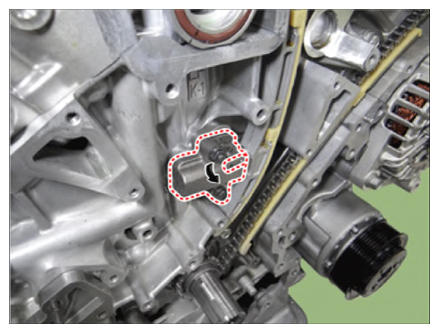

  12. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.
    G13403102Courtesy of KIA MOTORS AMERICA, INC.

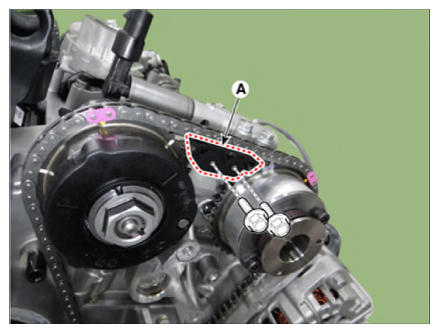

  13. Remove the LH timing chain cam to cam guide (A).
    G13403103Courtesy of KIA MOTORS AMERICA, INC.

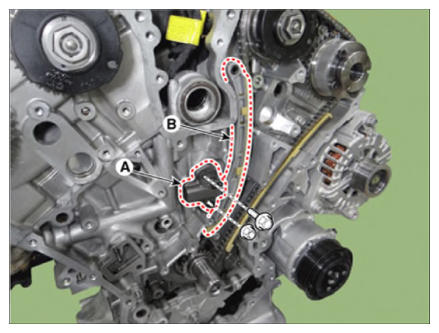

  14. Remove the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).
    G13403104Courtesy of KIA MOTORS AMERICA, INC.

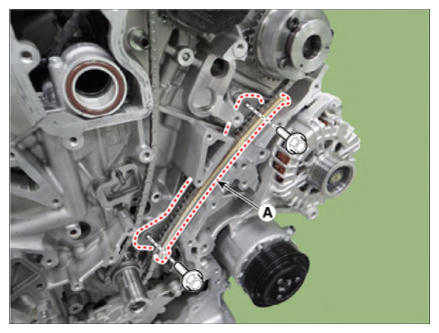

  15. Remove the LH timing chain guide (A).
    G13403105Courtesy of KIA MOTORS AMERICA, INC.

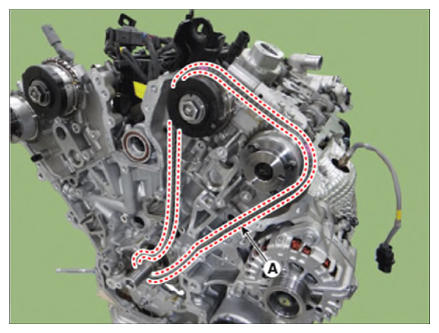

  16. Remove the LH timing chain (A).
    G13403106Courtesy of KIA MOTORS AMERICA, INC.

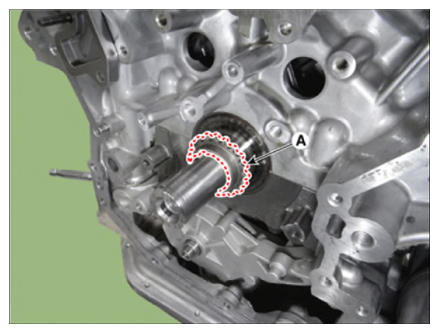

  17. Remove the crankshaft sprocket (A). (LH camshaft drive).
    G13403107Courtesy of KIA MOTORS AMERICA, INC.

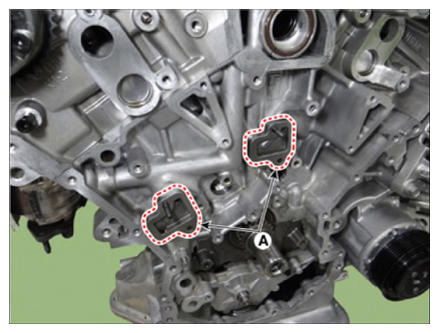

  18. Remove the tensioner adapter assembly (A).
    G13403108Courtesy of KIA MOTORS AMERICA, INC.
