Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

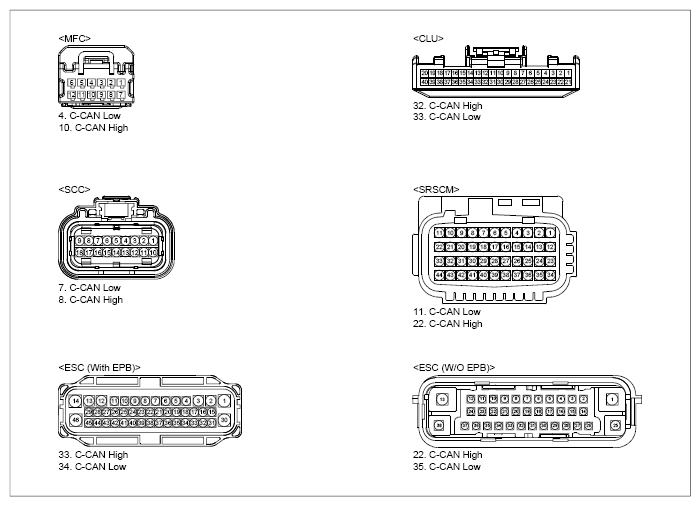

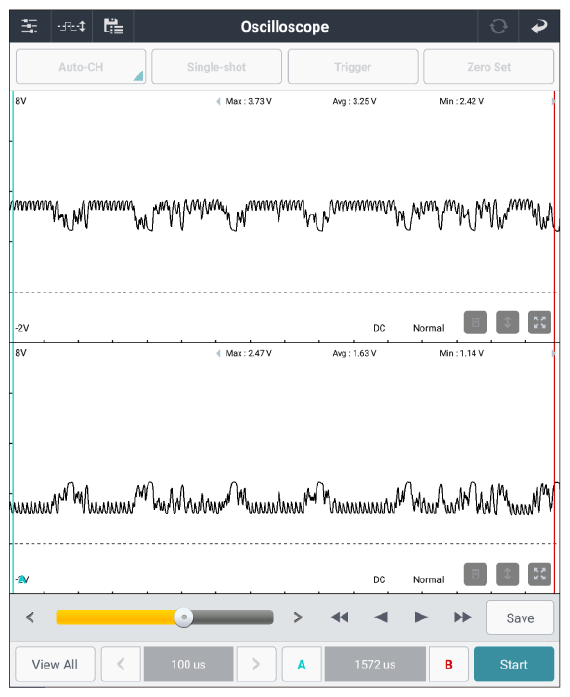

HECU connector (no application EPB) | 22 (C-CAN high) | Chassis ground | - | Figure 1 below |
| HECU connector (no application EPB) | 35 (C-CAN low) | Chassis ground | - | ||
| HECU connector (application EPB) | 33 (C-CAN high) | Chassis ground | - | Figure 1 below | |
| HECU connector (application EPB) | 34 (C-CAN low) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
