Connector And Terminal Function

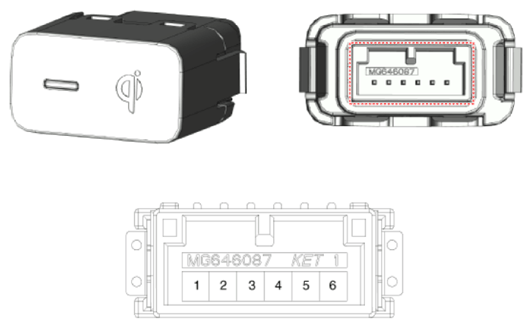

G13405191Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Ground
2 LED charging lamp (Green)
3 LED charging lamp (Amber)
4 -
5 Illumination (-)
6 Illumination (+)
