Circuit Diagram

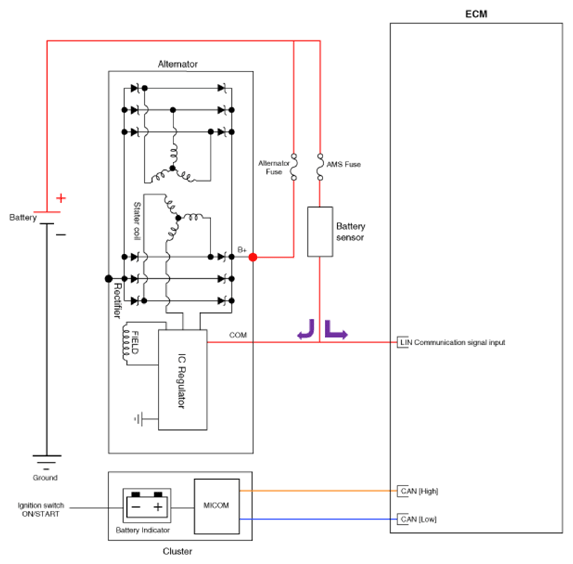

G13403155Courtesy of KIA MOTORS AMERICA, INC.

Information

CAUTION:
  • COM signal  - LIN communication control
  • B+ Terminal  - The output voltage from the generator travels to the battery via the B+ terminal.
