Components And Components Location: Components

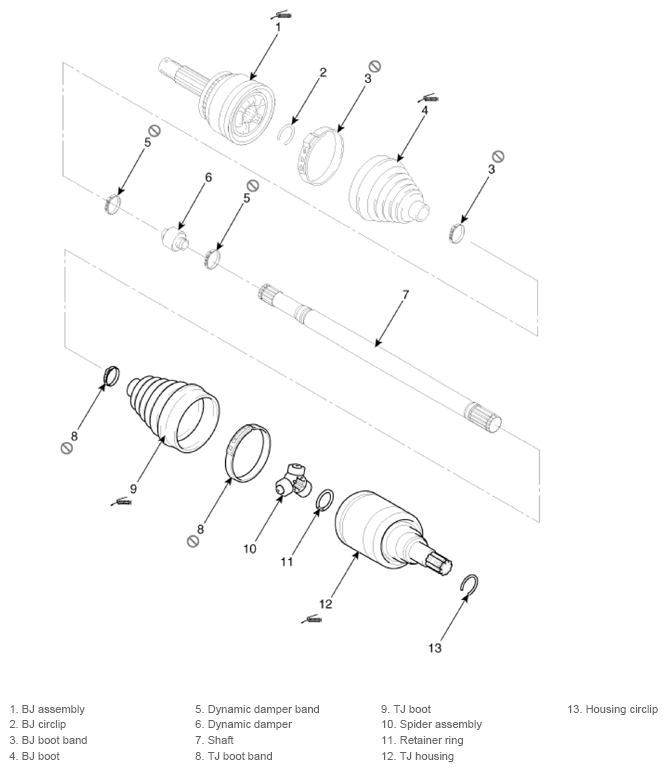

[LH]

G13403927Courtesy of KIA MOTORS AMERICA, INC.

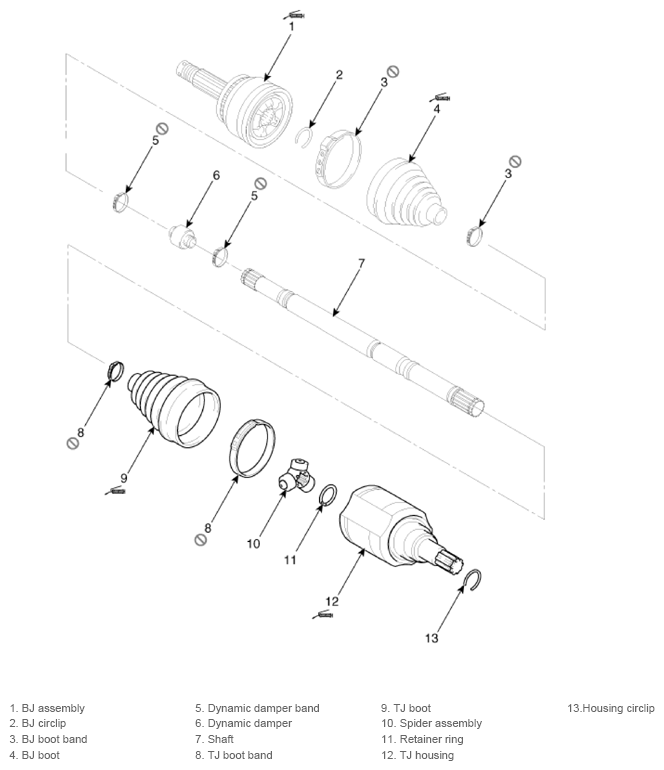

[RH]

G13403928Courtesy of KIA MOTORS AMERICA, INC.
