Repair Procedures: Replacement

  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  3. Remove the clamp (B) from the dynamic damper (A).
    G13403942Courtesy of KIA MOTORS AMERICA, INC.

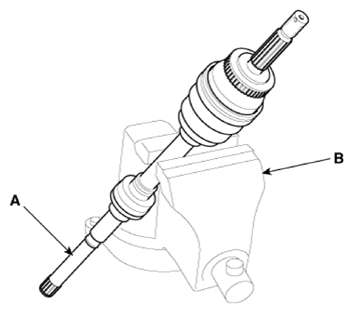

  4. Fix the driveshaft (A) with a vice (B) as illustrated.
    G13403943Courtesy of KIA MOTORS AMERICA, INC.
  5. Apply soapy water on the shaft to prevent damaging it from contact with shaft spline when removing the dynamic damper.

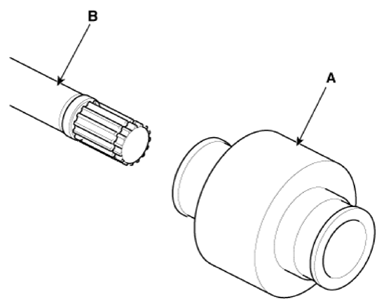

  6. Carefully separate the dynamic damper (A) from the shaft (B).
    G13403944Courtesy of KIA MOTORS AMERICA, INC.
