Removal and Installation

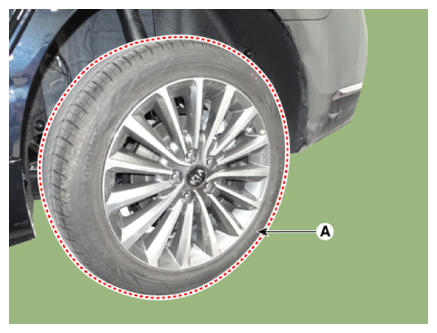

Remove the rear wheel & tire (A) from the rear hub.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

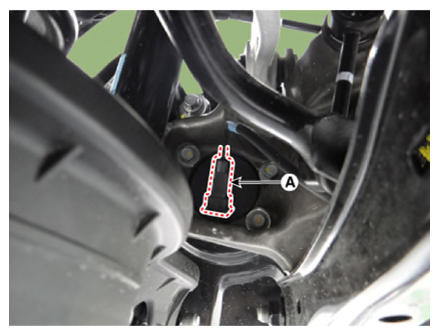

Disconnect the rear wheel speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

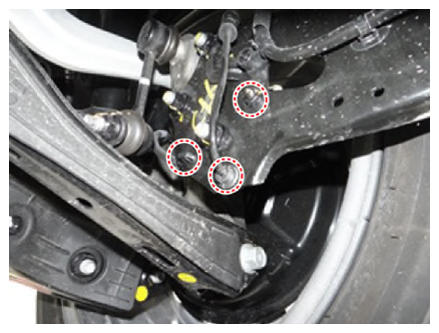

Disconnect the rear speed wheel sensor cable.

Courtesy of KIA MOTORS AMERICA, INC.

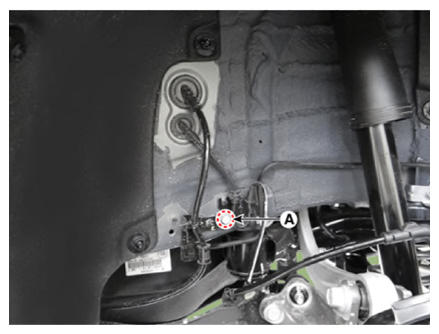

Loosen the bolt (A) and then remove the rear wheel speed sensor cable bracket.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear seat.
(Refer to body - "REAR SEAT ASSEMBLY ")
Remove the door scuff trim.
(Refer to body - "DOOR SCUFF TRIM ")
Disconnect the rear wheel speed sensor connector.
Install in the reverse order of removal.
