Removal and Installation

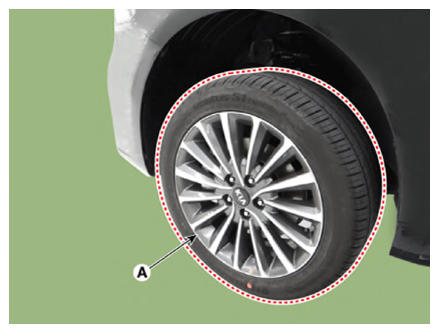

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the wheel & tire (A).

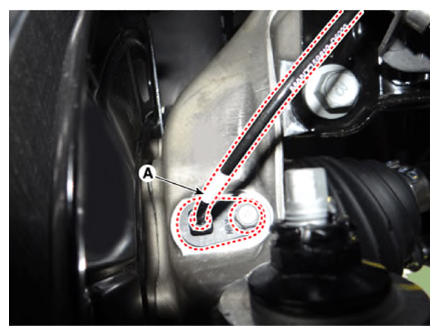

Remove the wheel speed sensor (A) from the knuckle.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the wheel speed sensor.

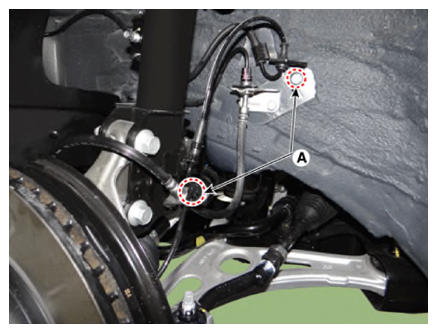

Loosen the bolt (A) and then remove the bracket.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
(Refer to body - "FRONT WHEEL GUARD ")

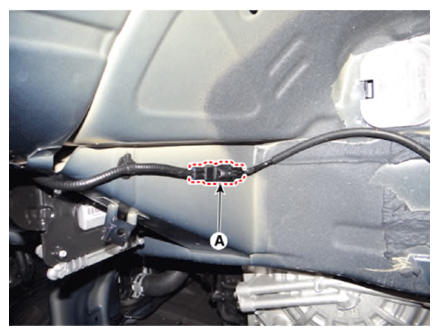

Disconnect the front wheel speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
