Repair Procedures: Adjustment: Notes

  1. Remove the rear wheel & tire.

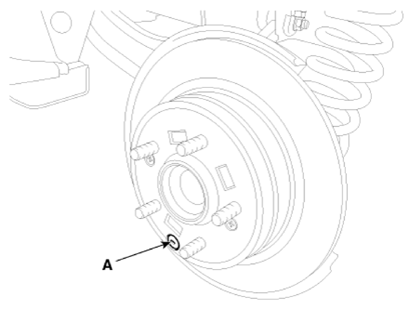

  2. Remove the rear brake disc plug (A).
    G13404455Courtesy of KIA MOTORS AMERICA, INC.

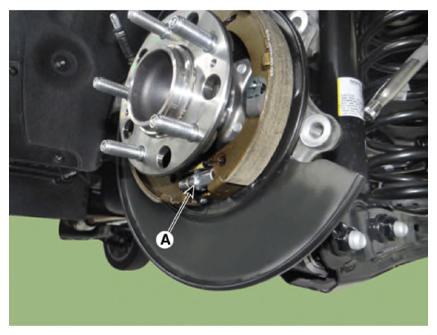

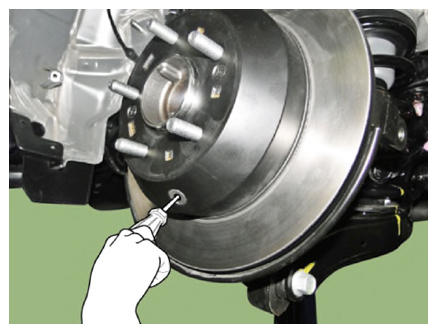

  3. Rotate the toothed wheel of adjuster (A) with a screwdriver until the disc is not moving, and then return it by 3 notches in the opposite direction.
    G13404456Courtesy of KIA MOTORS AMERICA, INC.
    G13404457Courtesy of KIA MOTORS AMERICA, INC.
