Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tap around the tool and related parts to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Be careful not to bend or scratch the trim and panels.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat outer shield cover.

    (Refer to Front Seat - "FRONT SEAT OUTER SHIELD COVER ")

  3. Remove the front seat inner shield cover.

    (Refer to Front Seat - "FRONT SEAT INNER SHIELD COVER ")

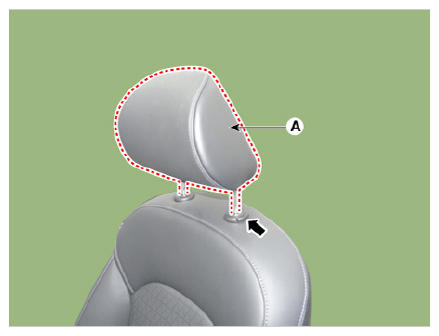

  4. Pull up the front seat headrest (A).
    G13404732Courtesy of KIA MOTORS AMERICA, INC.

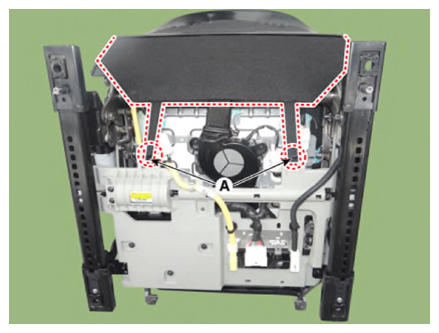

  5. Remove the front seat back board lower protector (A).
    G13404733Courtesy of KIA MOTORS AMERICA, INC.

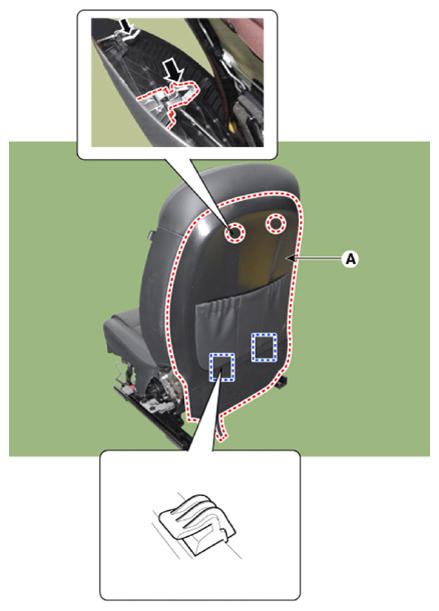

  6. Remove the front seat back board (A).
    NOTE:
    • Remove it in the direction of the arrow by holding both sides of the lower back board by hands.
    • Be careful not to damage the lock pins.
    G13404734Courtesy of KIA MOTORS AMERICA, INC.

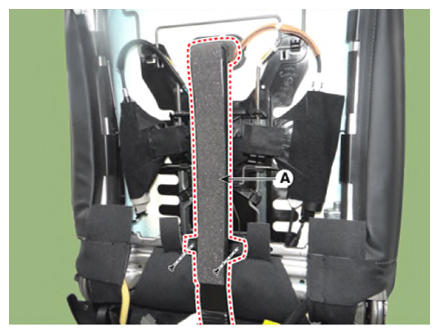

  7. Remove the front seat air ventilation duct (A).

    [Upper]

    G13404735Courtesy of KIA MOTORS AMERICA, INC.

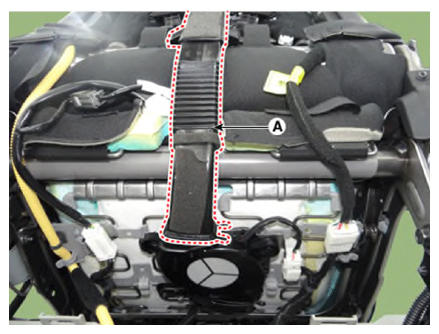

    [Lower]

    G13404736Courtesy of KIA MOTORS AMERICA, INC.

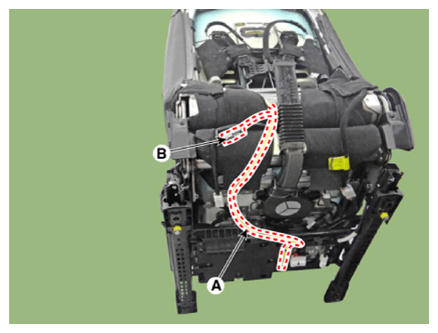

  8. Disconnect the airbag connector (A) and heater connector (B).
    G13404737Courtesy of KIA MOTORS AMERICA, INC.

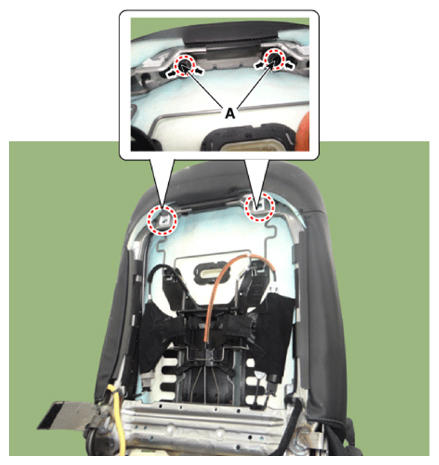

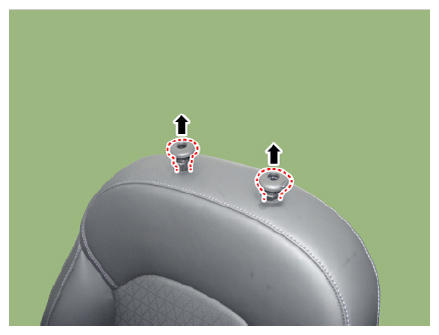

  9. Turn the front seat back cover inside out. Then pull out and remove the headrest guides (A) while pinching both sides of the lower part of the guides.
    G13404738Courtesy of KIA MOTORS AMERICA, INC.
    G13404739Courtesy of KIA MOTORS AMERICA, INC.

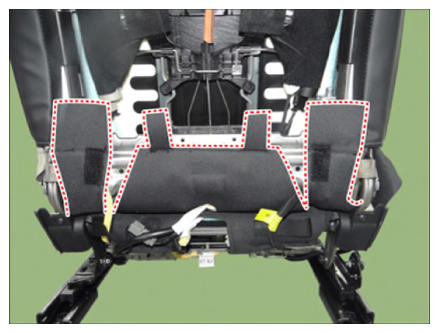

  10. Pull out the protector (A) from the front seat back frame.
    G13404740Courtesy of KIA MOTORS AMERICA, INC.

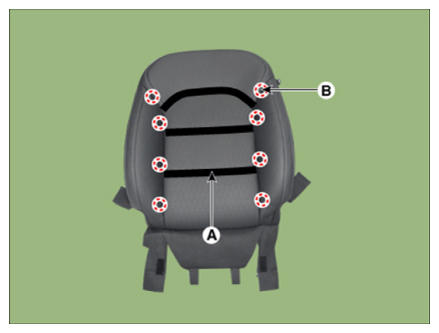

  11. After removing the velcro tape (A) and hog-ring clips (B) from the front of seat back, remove the front seat back cover (C).
    CAUTION: Be careful not to separate the wire insert from inside the sponge.
    G13404741Courtesy of KIA MOTORS AMERICA, INC.

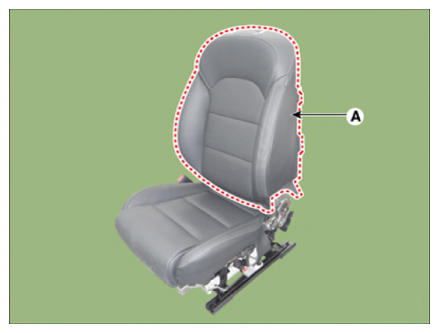

  12. Remove the front seat back cover (A) from the front seat back frame.
    G13404742Courtesy of KIA MOTORS AMERICA, INC.
  13. Install in the reverse order of removal.

    Information

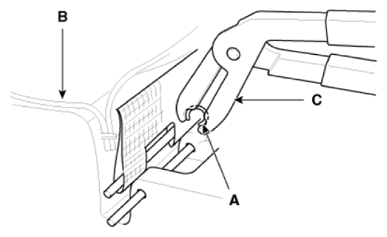

    • To prevent wrinkles, make sure that the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
    G13404743Courtesy of KIA MOTORS AMERICA, INC.
