FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

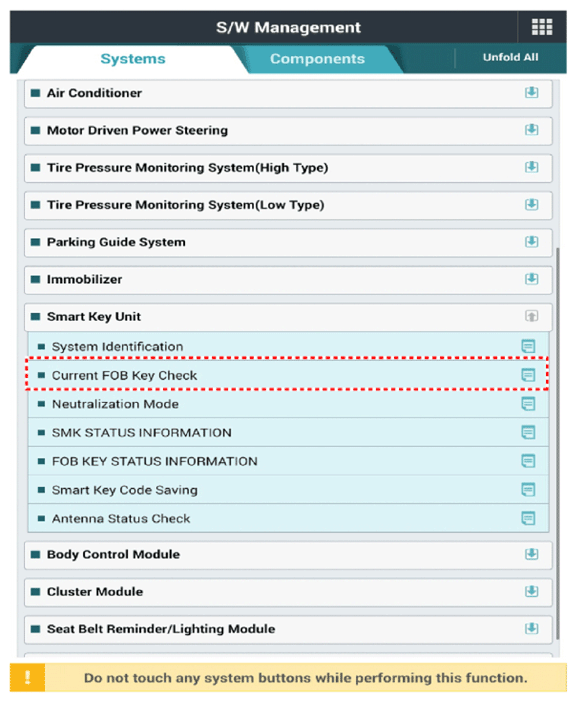

    G13405585Courtesy of KIA MOTORS AMERICA, INC.

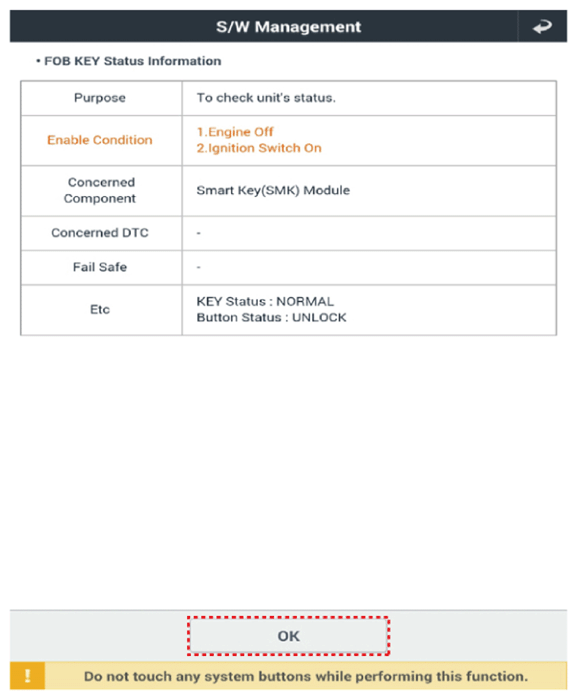

    G13405586Courtesy of KIA MOTORS AMERICA, INC.

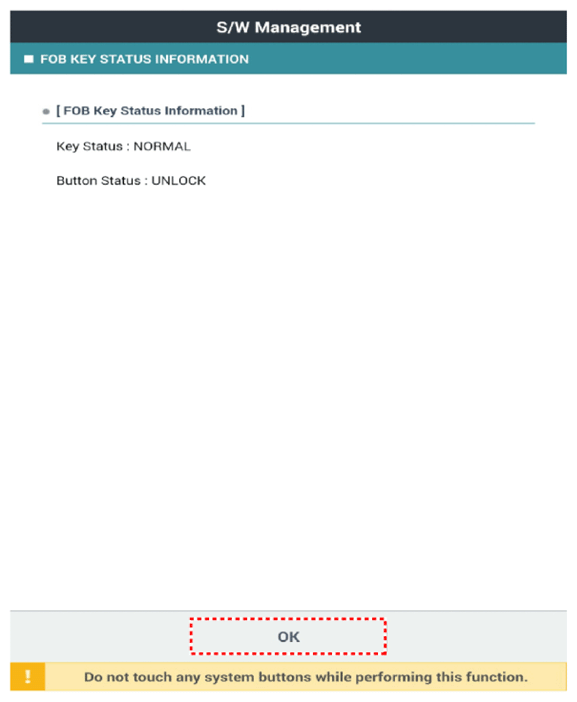

    G13405587Courtesy of KIA MOTORS AMERICA, INC.
