Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the trunk lid trim after opening the trunk.

    (Refer to Body - "TRUNK LID TRIM ")

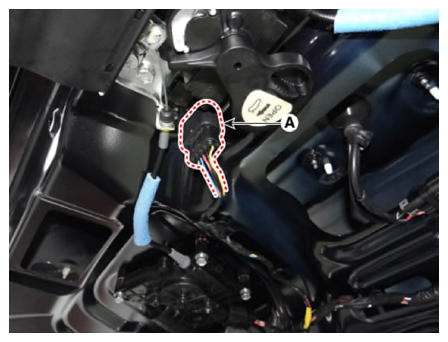

  3. Disconnect the power latch connectors (A).
    G13405478Courtesy of KIA MOTORS AMERICA, INC.

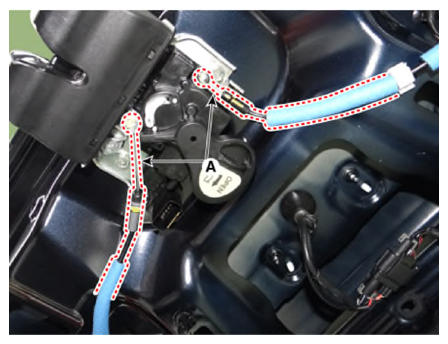

  4. Remove the power latch cables (A).
    G13405479Courtesy of KIA MOTORS AMERICA, INC.

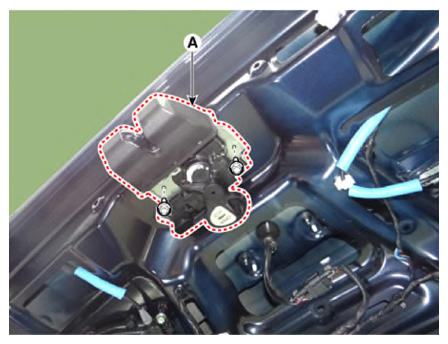

  5. Remove the power latch assembly (A) after loosening the mounting bolts.
    G13405480Courtesy of KIA MOTORS AMERICA, INC.
