Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

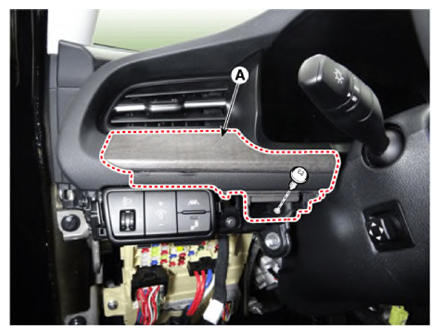

  3. Remove the crash pad garnish [LH] (A) after loosening the screw.
    G13405847Courtesy of KIA MOTORS AMERICA, INC.

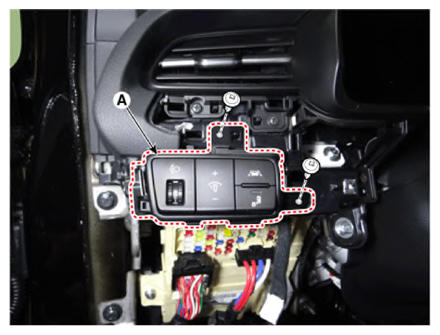

  4. Remove the side crash pad switch (A) after loosening the screws.
    G13405848Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the side crash pad switch connector (A).
    G13405849Courtesy of KIA MOTORS AMERICA, INC.
