Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. EPS Type Recognition.
  2. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "EPS Type Recognition" in "Vehicle S/W management" with KDS.
 Figures 1 to 3 below

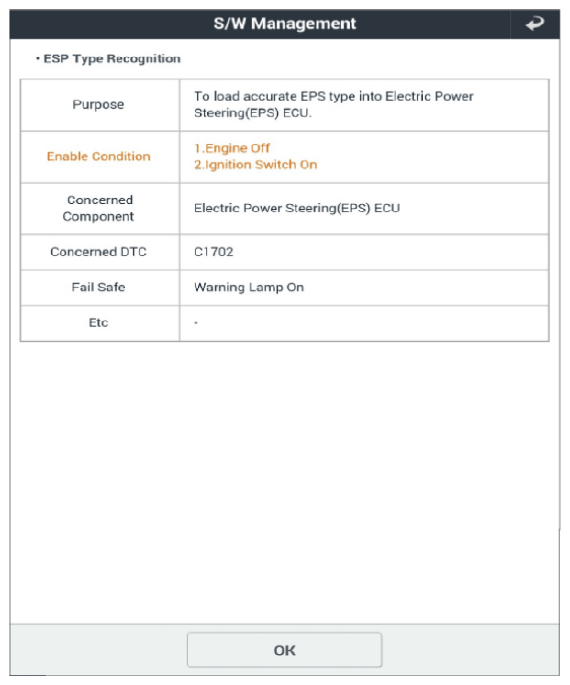

G13410528Courtesy of KIA MOTORS AMERICA, INC.

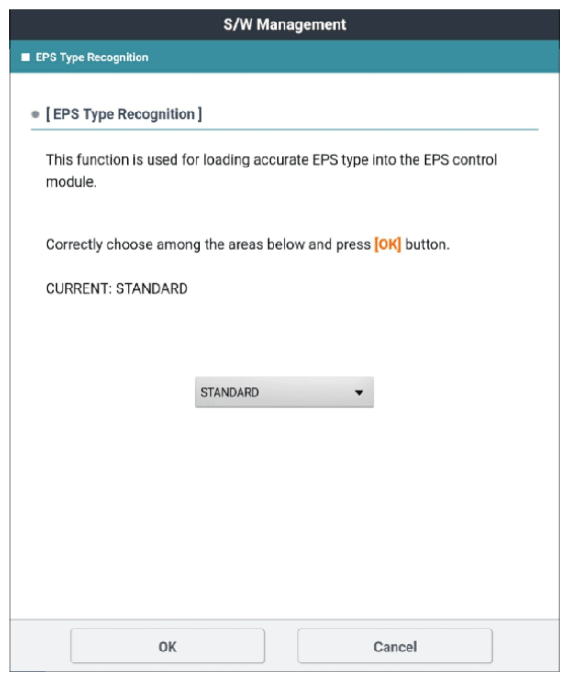

G13410529Courtesy of KIA MOTORS AMERICA, INC.

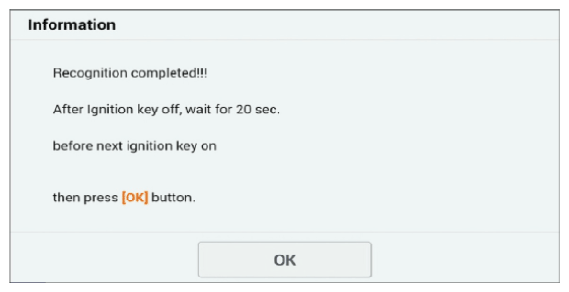

G13410530Courtesy of KIA MOTORS AMERICA, INC.
