Check The Fuel Pressure Control Valve

  1. Ignition "OFF".
  2. Connect VMI to KDS and select "Oscilloscope".
  3. Ignition "ON".
  4. Perform "Actuation Test" for "Fuel Pressure Regulator"
  5. Measure signal waveform between Pin No. 2 (high) terminal of FPCV and chassis ground with VMI.
  6. Measure signal waveform between Pin No. 1 (low) terminal of FPCV and chassis ground with VMI.

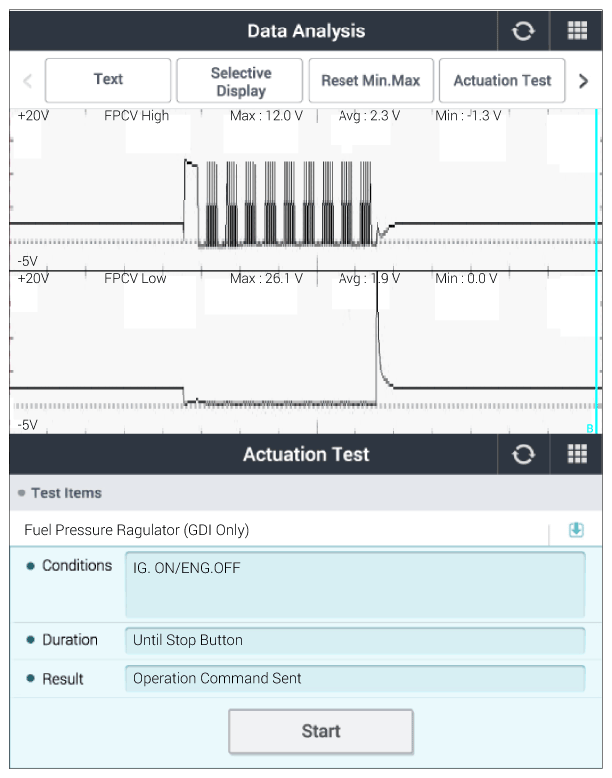

    G13408277Courtesy of KIA MOTORS AMERICA, INC.
  7. Does the RPS operate properly? (Check variation)

    YES

    NO



  1. Ignition "OFF".
  2. Connect VMI to KDS and select "Oscilloscope".
  3. Ignition "ON"., Engine "ON"
  4. Measure signal waveform between Pin No. 2 (high) terminal of FPCV connector and chassis ground with VMI.
  5. Measure signal waveform between Pin No. 1 (low) terminal of FPCV connector and chassis ground with VMI.

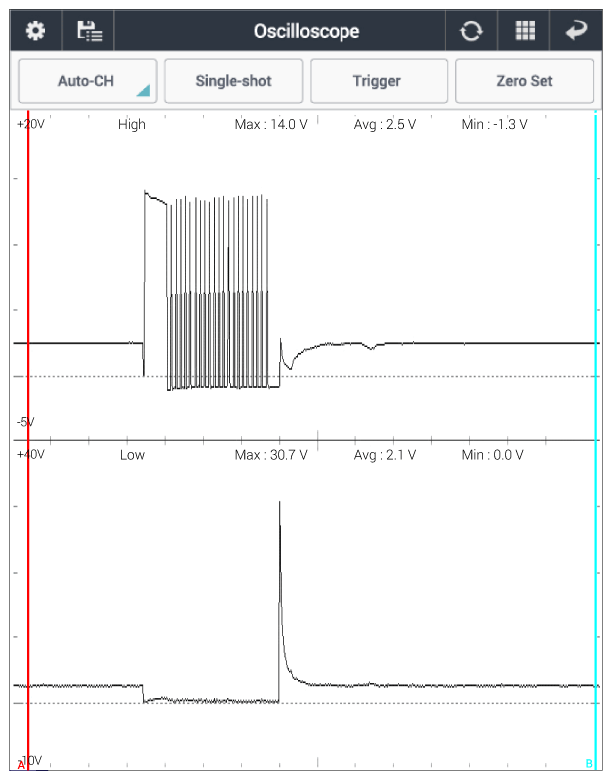

    G13408278Courtesy of KIA MOTORS AMERICA, INC.

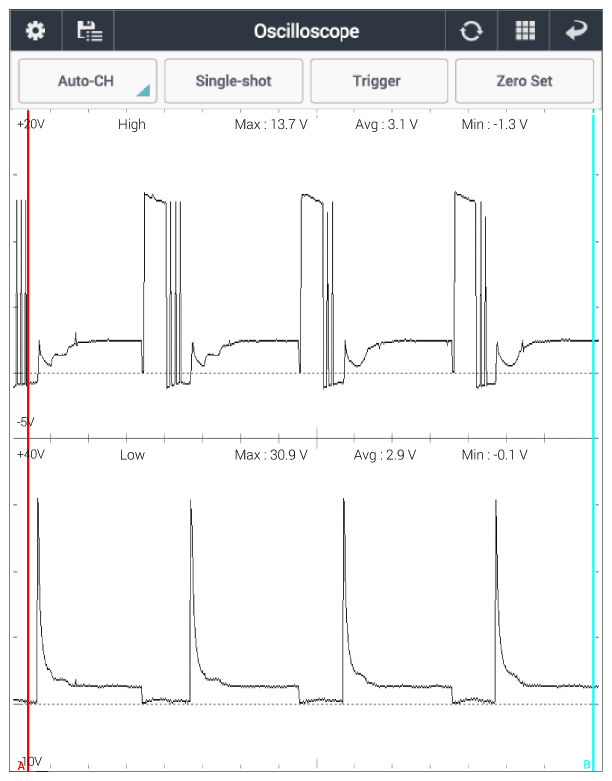

    G13408279Courtesy of KIA MOTORS AMERICA, INC.
  6. Does the FPCV operate properly? (Check variation)

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, replace the FPCV and go to "VERIFICATION OF REPAIR " procedure.
