Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures 1 to 10 below

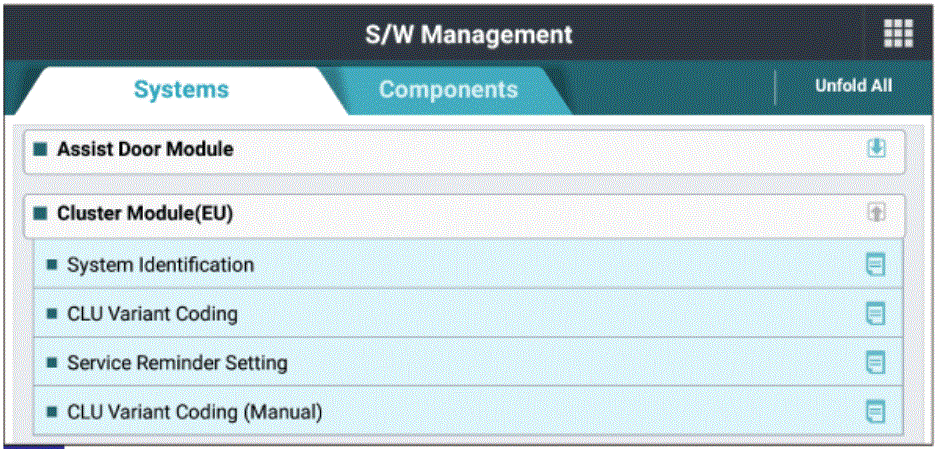

G00598931Courtesy of KIA MOTORS AMERICA, INC.

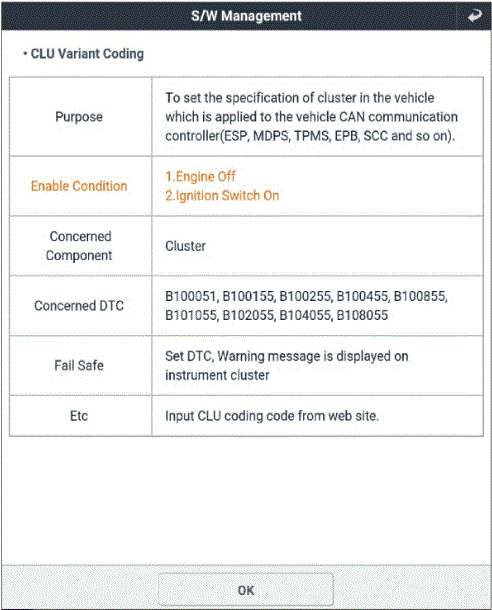

G00598932Courtesy of KIA MOTORS AMERICA, INC.

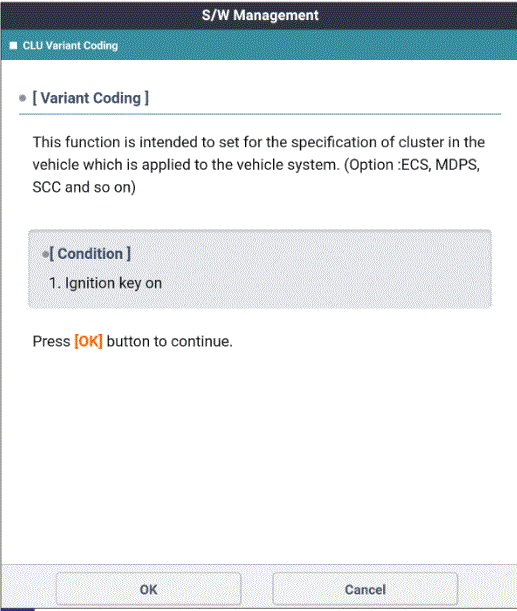

G00598933Courtesy of KIA MOTORS AMERICA, INC.

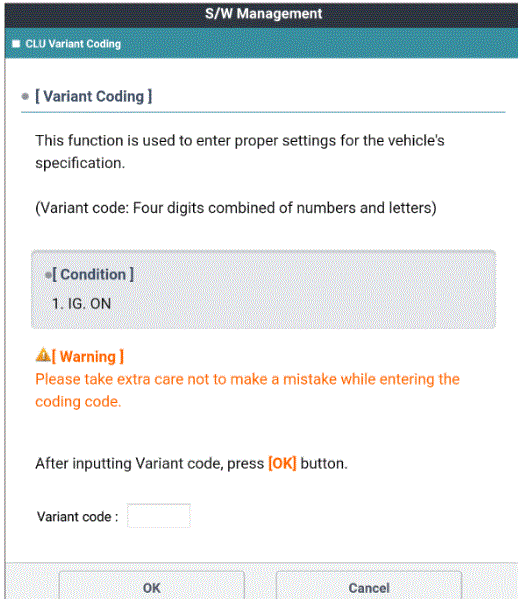

G00598934Courtesy of KIA MOTORS AMERICA, INC.

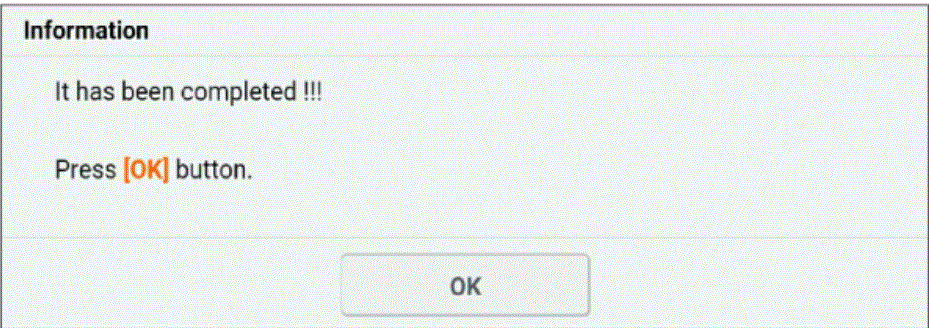

G00598935Courtesy of KIA MOTORS AMERICA, INC.

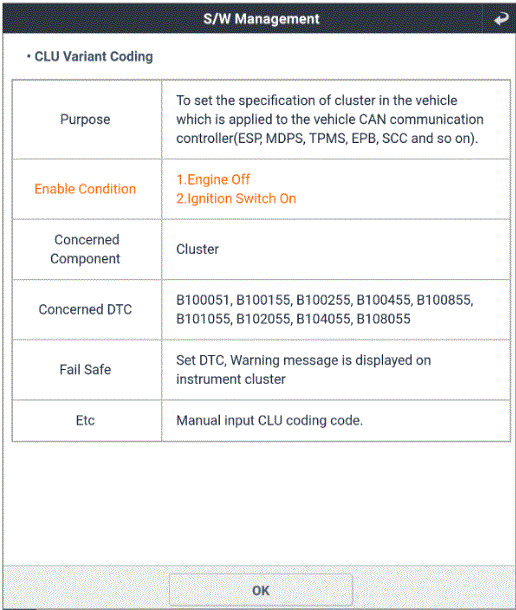

G00598936Courtesy of KIA MOTORS AMERICA, INC.

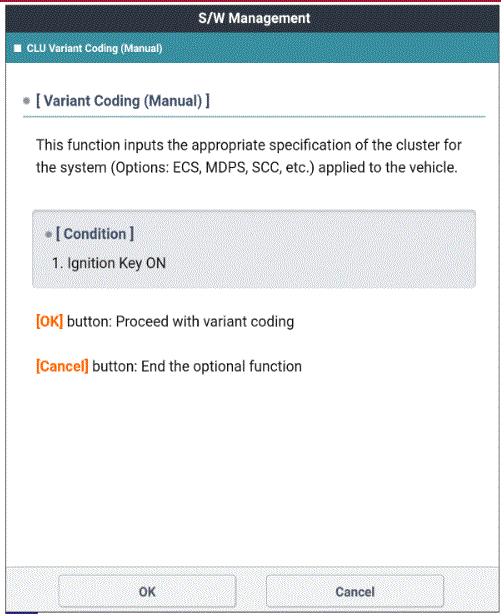

G00598937Courtesy of KIA MOTORS AMERICA, INC.

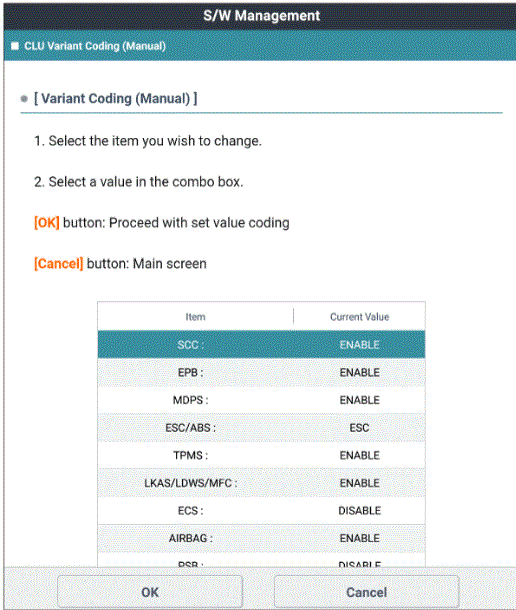

G00598938Courtesy of KIA MOTORS AMERICA, INC.

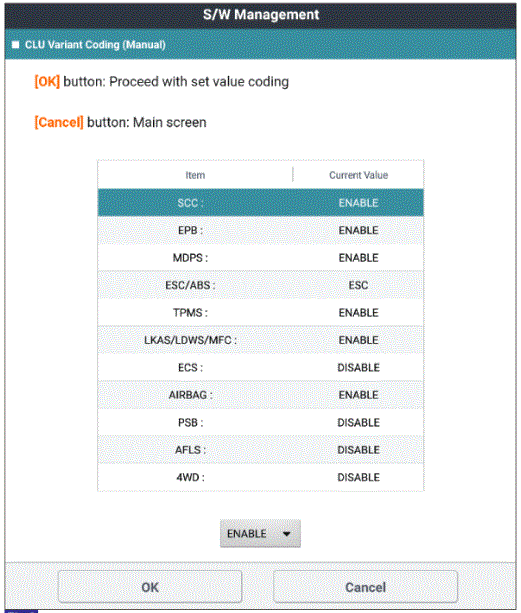

G00598939Courtesy of KIA MOTORS AMERICA, INC.

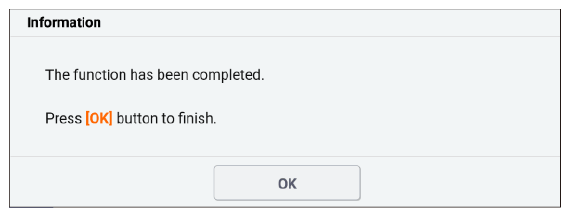

G13407967Courtesy of KIA MOTORS AMERICA, INC.
