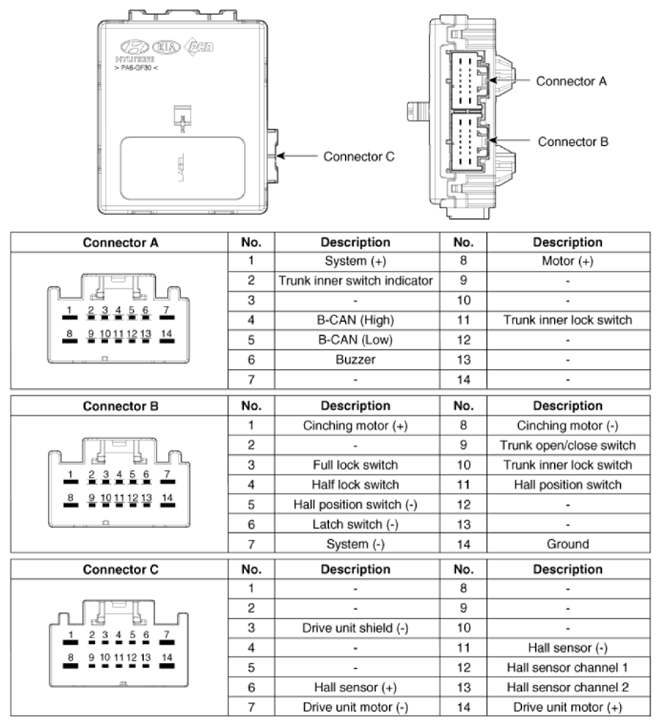

Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Power Trunk Lid System >> Power Trunk Module Drive Unit >> Schematic Diagrams >> Connector And Terminal Function
