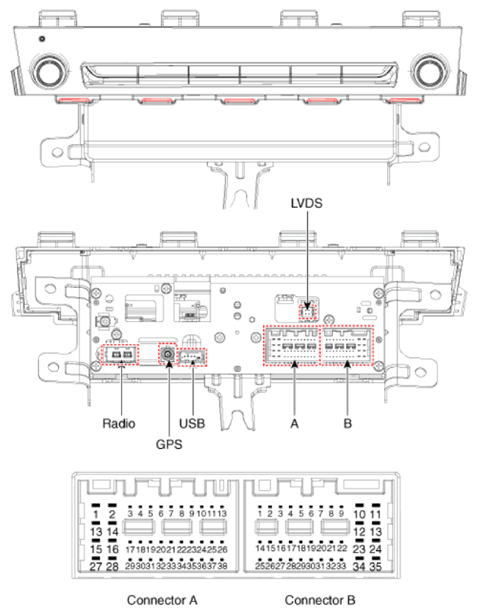

Display Audio Head Unit

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
Pin	Connector A	Connector B
1	Rear door speaker LH (+)	-
2	Rear door speaker LH (-)	MIC Signal (+)
3	-	-
4	-	-
5	-	-
6	Camera power	Illumination (+)
7	Camera video (Y)	MM-CAN (High)
8	-	-
9	-	-
10	-	Battery (+)
11	USB Detect	Battery (+)
12	Steering wheel remote controller	Ground
13	Front door speaker LH (+)	Ground
14	Front door speaker LH (-)	-
15	Front door speaker RH (-)	MIC Signal (-)
16	Front door speaker RH (+)	-
17	-	-
18	-	-
19	-	Illumination (-)
20	Camera power ground	MM-CAN (Low)
21	Camera video ground	-
22	-	ACC
23	-	-
24	-	Front monitor power
25	-	-
26	Steering wheel remote controller (Ground)	-
27	Rear door speaker RH (-)	-
28	Rear door speaker RH (+)	-
29	-	-
30	-	-
31	-	-
32	-	-
33	-	IGN1
34	-	-
35	-	Front monitor power (Ground)
36	-
37	-
38	Vehicle speed

Radio antenna connector	Pin	Function	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Ground	3	Ground
Courtesy of KIA MOTORS AMERICA, INC.	2	FMI/AM	4	FM2
USB connector	Pin	Function	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	USB_VCC	3	USB_Data (High)
Courtesy of KIA MOTORS AMERICA, INC.	2	USB_Data(Low)	4	USB Ground
GPS antenna connector	Pin	Function	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Signal	2	Ground
LVDS connector	Pin	Function	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Front monitor LVDS (Low)	3	Front monitor LVDS (High)
Courtesy of KIA MOTORS AMERICA, INC.	2	Front monitor LVDS touch interrupt	4	Front monitor touch enable
