AVN Head Unit

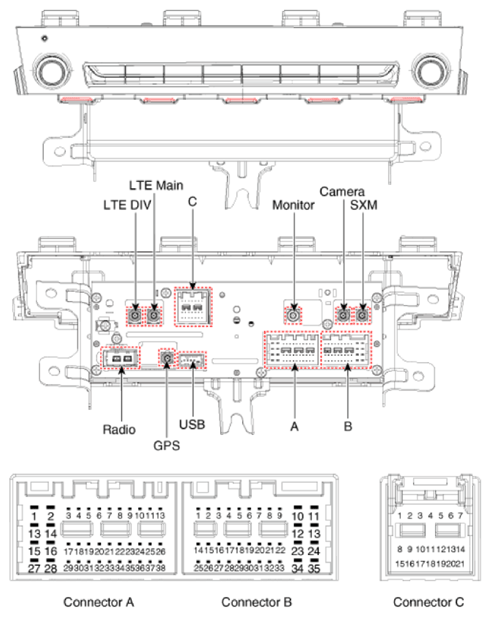

G13405092Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
Connector A Connector B Connector C
External Amplifier Internal Amplifier
1 - Left rear door speaker (+) - -
2 - Left rear door speaker (-) MIC (+) P-CAN (High)
3 Amplifier navigation voice (+) - - -
4 Amplifier_SPDIF (High) - - -
5 - - -
6 Camera power Illumination (+) -
7 Camera video MM-CAN (High) -
8 - - -
9 - - P-CAN (Low)
10 - Battery (+) -
11 DTC Battery (+) -
12 Steering wheel key Ground -
13 - Left front door speaker (+) Ground -
14 - Left front door speaker (-) - -
15 - Right front door speaker (-) MIC (-) -
16 - Right front door speaker (+) - MTS Key
17 Amplifier navigation voice (-) - - -
18 Amplifier SPDIF (Low) - - -
19 Amplifier SPDIF (Ground) - Illumination (-) -
20 Camera power ground MM-CAN (Low) -
21 Camera video ground - -
22 - ACC
23 - -
24 - Monitor: Power
25 - -
26 Steering wheel_key_Ground -
27 - Right rear door speaker (-) -
28 - Right rear door speaker (+) -
29 - -
30 - -
31 - -
32 RVM: -/SVM: Digital detect -
33 Camera shield ground IGN1
34 - -
35 - Monitor: Ground
36 -
37 -
38 Vehicle speed signal
Radio antenna connector Pin Function Pin Function
G13405093Courtesy of KIA MOTORS AMERICA, INC.
 1 Ground 3 Ground
2 FM1/AM 4 FM2
USB connector Pin Function Pin Function
G13405094Courtesy of KIA MOTORS AMERICA, INC.
 1 USB_VCC 3 USB_Data (High)
2 USB_Data (Low) 4 USB Ground
GPS antenna connector Pin Function Pin Function
G13405095Courtesy of KIA MOTORS AMERICA, INC.
 1 Signal 2 Ground
Monitor antenna connector Pin Function Pin Function
G13405096Courtesy of KIA MOTORS AMERICA, INC.
 1 Video input 2 Ground
Camera antenna connector Pin Function Pin Function
G13405097Courtesy of KIA MOTORS AMERICA, INC.
 1 Video input 2 Ground
SXM antenna connector Pin Function Pin Function
G13405098Courtesy of KIA MOTORS AMERICA, INC.
 1 Signal 2 Ground
LTE Main antenna Connector Pin Function Pin Function
G13405099Courtesy of KIA MOTORS AMERICA, INC.
 1 Signal 2 Ground
LTE DIV antenna Connector Pin Function Pin Function
G13405100Courtesy of KIA MOTORS AMERICA, INC.
 1 Signal 2 Ground
