Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures 1 to 4 below

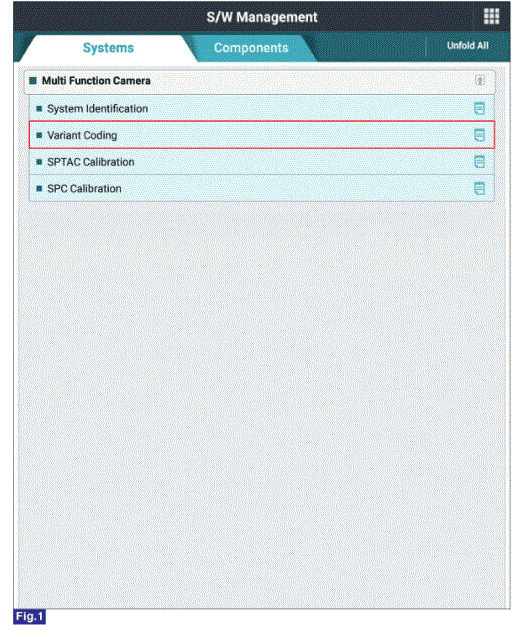

G00591099Courtesy of KIA MOTORS AMERICA, INC.

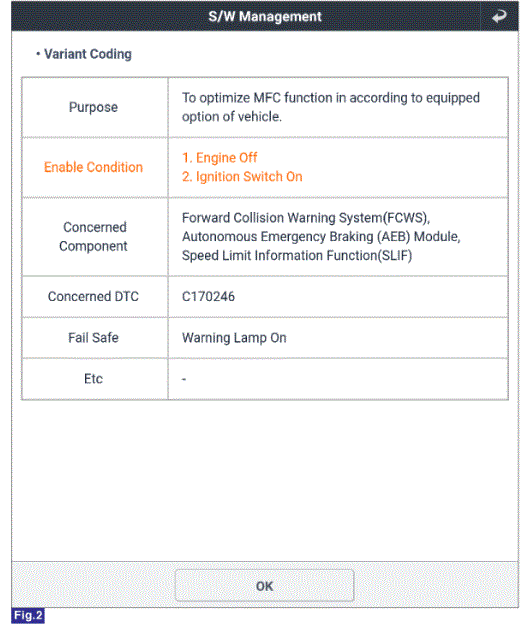

G00591100Courtesy of KIA MOTORS AMERICA, INC.

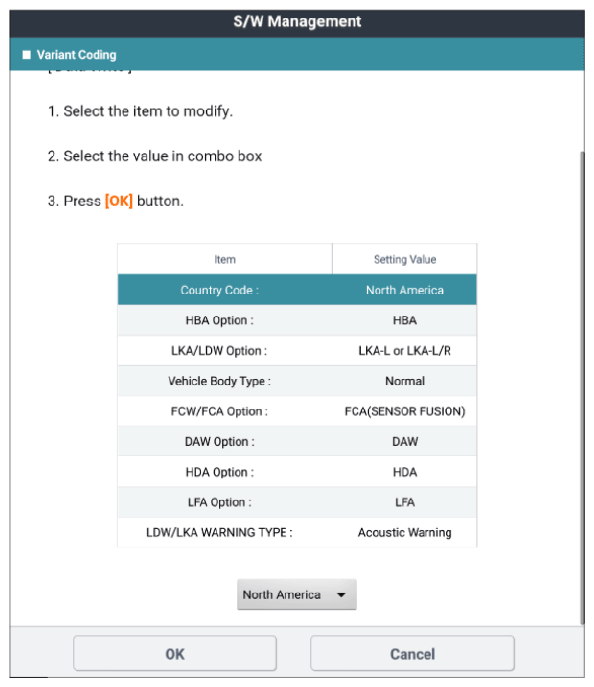

G13409805Courtesy of KIA MOTORS AMERICA, INC.

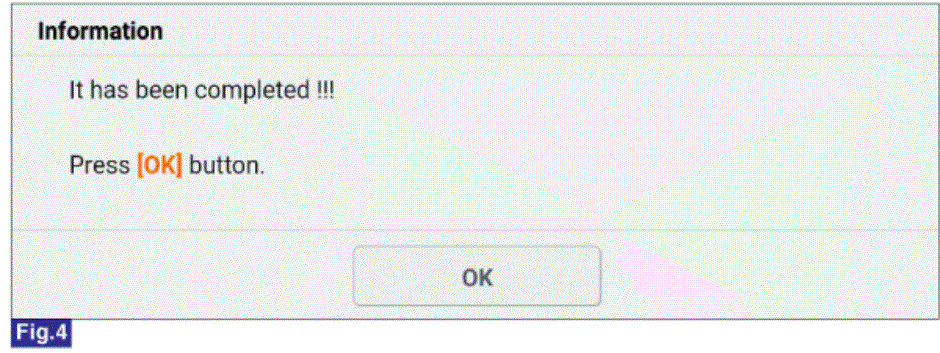

G00591101Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON". (with calibration target)
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures 1 to 9 below
