Advanced Smart Cruise Control System
>>
Advanced Smart Cruise Control (ASCC) Switch
>>
Schematic Diagrams
>>

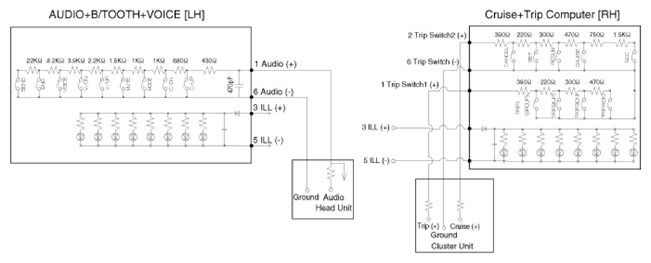

Circuit Diagram
Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

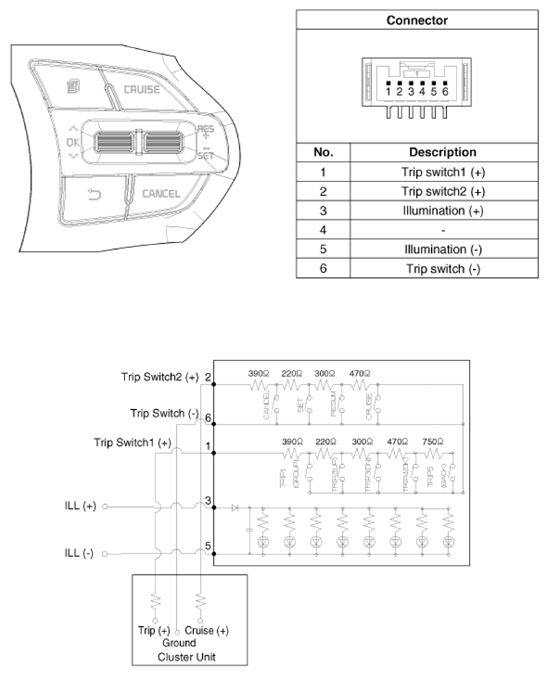

[Trip + ACC]
Courtesy of KIA MOTORS AMERICA, INC.

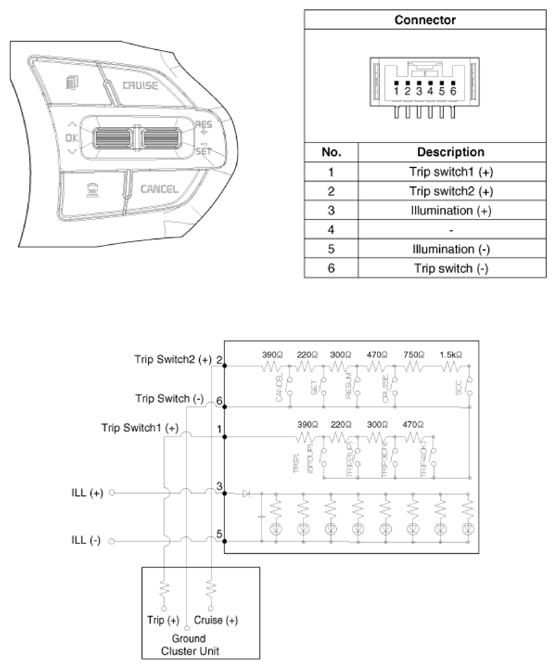

[Trip + ASCC]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
