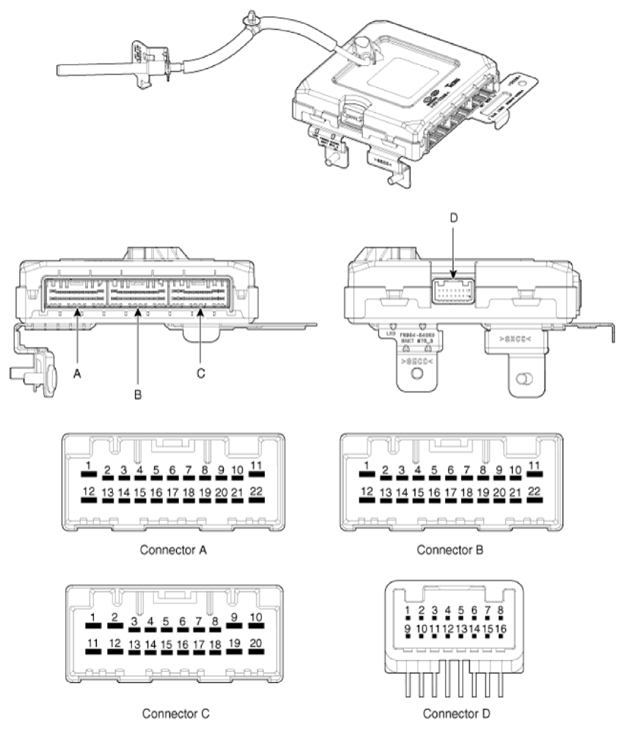

| 1 |
Battery (+) |
IG1 (PAS Power) |
- |
Rain sensor option (Input) |
| 2 |
IGN2 |
Front PAS power (Output) |
- |
Heated handle switch (Input) |
| 3 |
Auto light power (Output) |
Crash signal (Input) |
- |
'P' Position (Input) |
| 4 |
Fog lamp switch (Input) |
PAS ON switch (Input) |
- |
Curtain down (Output) |
| 5 |
Light switch (Input) |
LIN (PAS) |
- |
Curtain up (Output) |
| 6 |
- |
P-CAN (Low) |
Door unlock signal for IFU (Output) |
- |
| 7 |
- |
P-CAN (High) |
Wiper ON relay (Output) |
Battery (+) |
| 8 |
Front washer switch (Input) |
- |
Wiper low high relay (Output) |
Heated handle indicator (Output) |
| 9 |
Wiper parking state (Input) |
B-CAN (High) |
Heated handle power (Output) |
Sunroof open switch (Input) |
| 10 |
ATM Solenoid (Output) |
B-CAN (Low) |
IG2 (Heated handle power) |
Rear view switch (Input) |
| 11 |
Rear PAS power (Output) |
- |
Ground |
- |
| 12 |
IGN1 |
NTC Sensor (Input) |
- |
Ground |
| 13 |
ACC |
Key In switch (Input) |
- |
- |
| 14 |
Auto light sensor (Input) |
PAS Option (Input) |
Key hole illumination (Output) |
Curtain switch (Input) |
| 15 |
Auto light ground (Output) |
Rear defogger switch (Input) |
- |
- |
| 16 |
Headlamp high switch (Input) |
LIN (Safety window ECU) |
Wiper power relay (Output) |
External buzzer (Output) |
| 17 |
Front wiper switch (Input) |
LIN (Rain sensor) |
- |
|
| 18 |
Front wiper volume switch (Input) |
PAS ON switch indicator (Output) |
- |
| 19 |
Front wiper low back up switch (Input) |
Ground |
Foot lamp (Output) |
| 20 |
Brake switch (Input) |
Security indicator (Output) |
Room lamp (Output) |
| 21 |
- |
- |
|
| 22 |
Ground |
- |
