Repair Procedures: Removal

Ignition coil (Cylinder #1) [Bank 1]

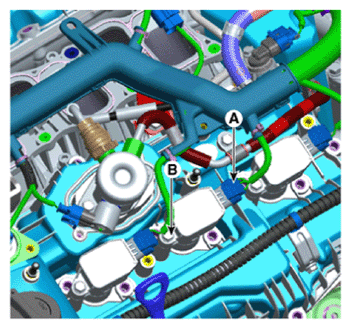

1. Remove the surge tank.

   (Refer to Engine Mechanical System - "SURGE TANK ")

2. Remove the strap (A).
3. Disconnect the Ignition coil connector (B).
4. Remove the ignition coil after loosening the mounting bolt (C).

   Courtesy of KIA MOTORS AMERICA, INC.

Ignition coil (Cylinder #2) [Bank 2]

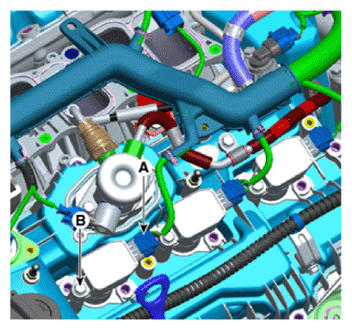

1. Turn the ignition switch off and disconnect the battery negative (-) terminal.
2. Disconnect the Ignition coil connector (A).
3. Remove the ignition coil after loosening the mounting bolt (B).

   Courtesy of KIA MOTORS AMERICA, INC.

Ignition coil (Cylinder #3) [Bank 1]

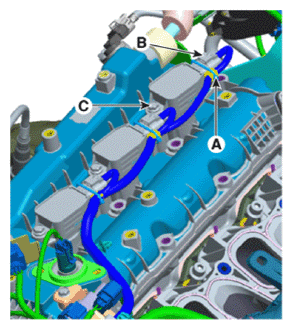

1. Remove the surge tank.

   (Refer to Engine Mechanical System - "SURGE TANK ")

2. Remove the strap (A).
3. Disconnect the Ignition coil connector (B).
4. Remove the ignition coil after loosening the mounting bolt (C).

   Courtesy of KIA MOTORS AMERICA, INC.

Ignition coil (Cylinder #4) [Bank 2]

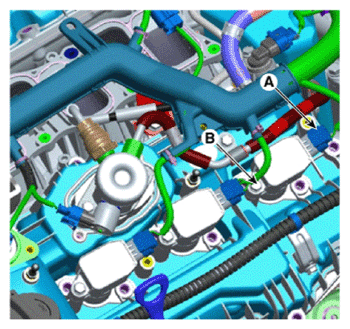

1. Turn the ignition switch off and disconnect the battery negative (-) terminal.
2. Disconnect the Ignition coil connector (A).
3. Remove the ignition coil after loosening the mounting bolt (B).

   Courtesy of KIA MOTORS AMERICA, INC.

Ignition coil (Cylinder #5) [Bank 1]

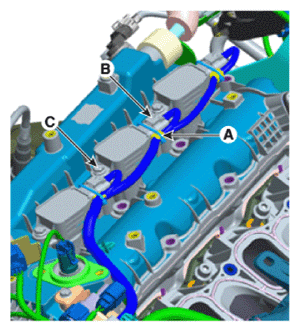

1. Remove the surge tank.

   (Refer to Engine Mechanical System - "SURGE TANK ")

2. Remove the strap (A).
3. Disconnect the Ignition coil connector (B).
4. Remove the ignition coil after loosening the mounting bolt (C).

   Courtesy of KIA MOTORS AMERICA, INC.

Ignition coil (Cylinder #6) [Bank 2]

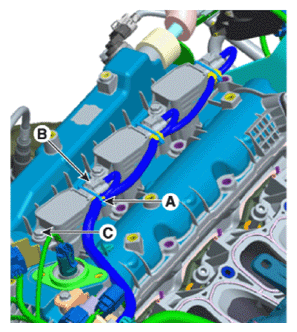

1. Turn the ignition switch off and disconnect the battery negative (-) terminal.
2. Disconnect the Ignition coil connector (A).
3. Remove the ignition coil after loosening the mounting bolt (B).

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

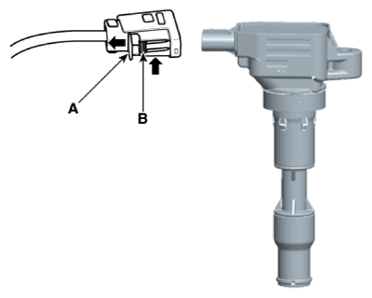

   • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
