Power Window Rear Switch

  1. Disconnect the negative battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

  3. Loosen the power window switch mounting screws.
  4. Remove the power window switch (A) by pushing the holders in the direction of arrow.
  5. Install in the reverse order of removal.

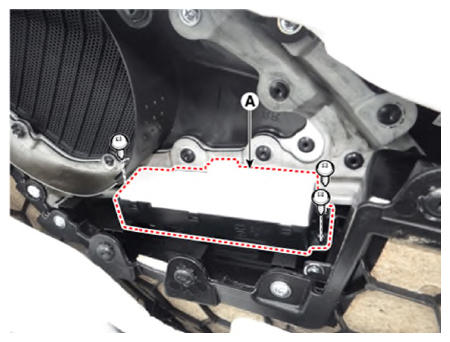

G13405449Courtesy of KIA MOTORS AMERICA, INC.

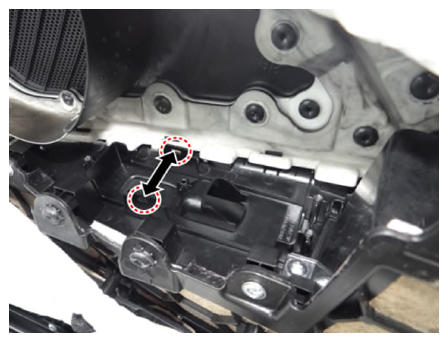

G13405450Courtesy of KIA MOTORS AMERICA, INC.
