Components Location

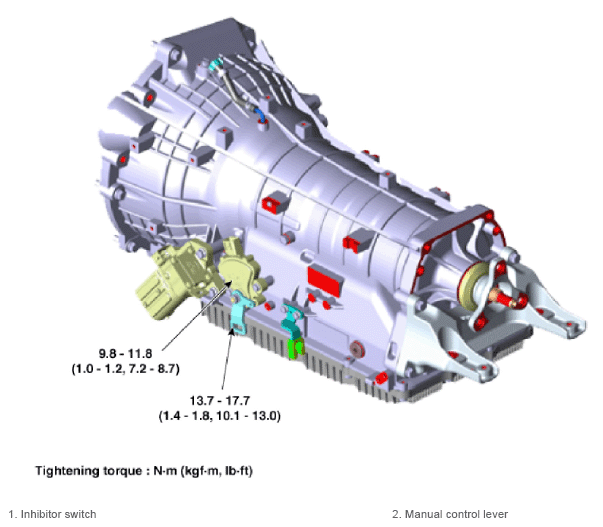

Fig 1: Inhibitor Switch Components Location With Torque Specification
G12795306Courtesy of KIA MOTORS AMERICA, INC.
