Components Location

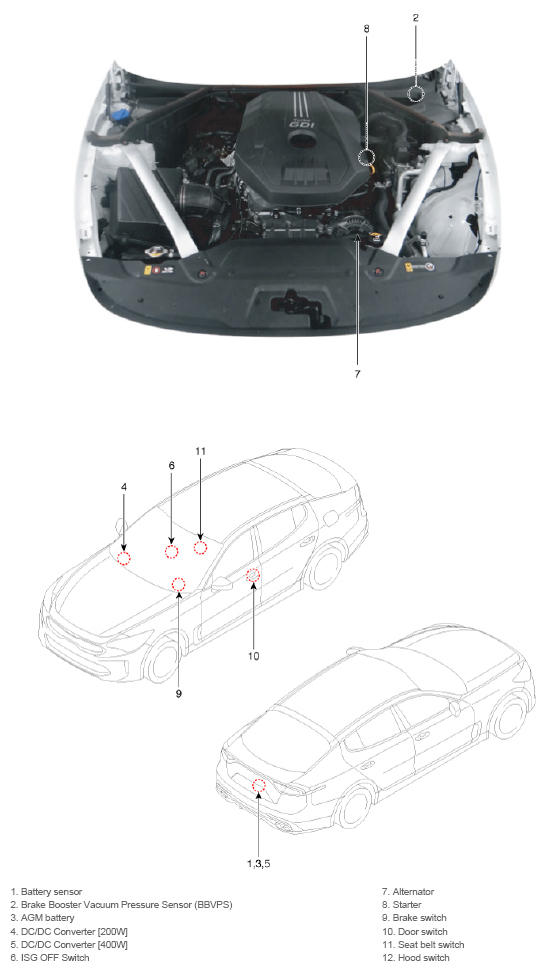

G12792416Courtesy of KIA MOTORS AMERICA, INC.

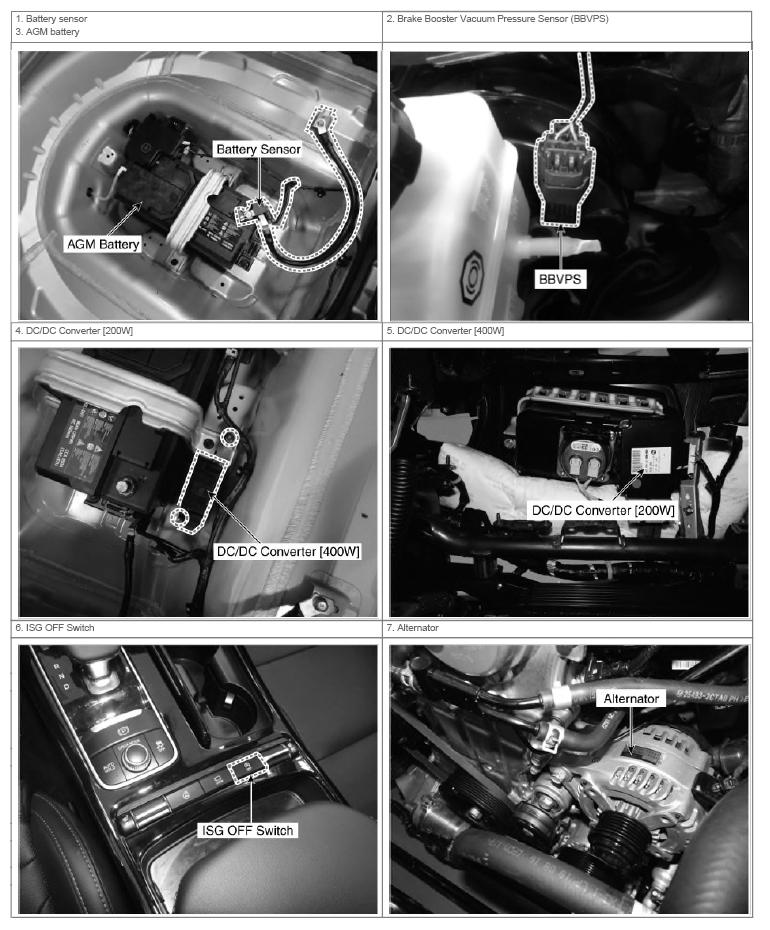

G12792417Courtesy of KIA MOTORS AMERICA, INC.

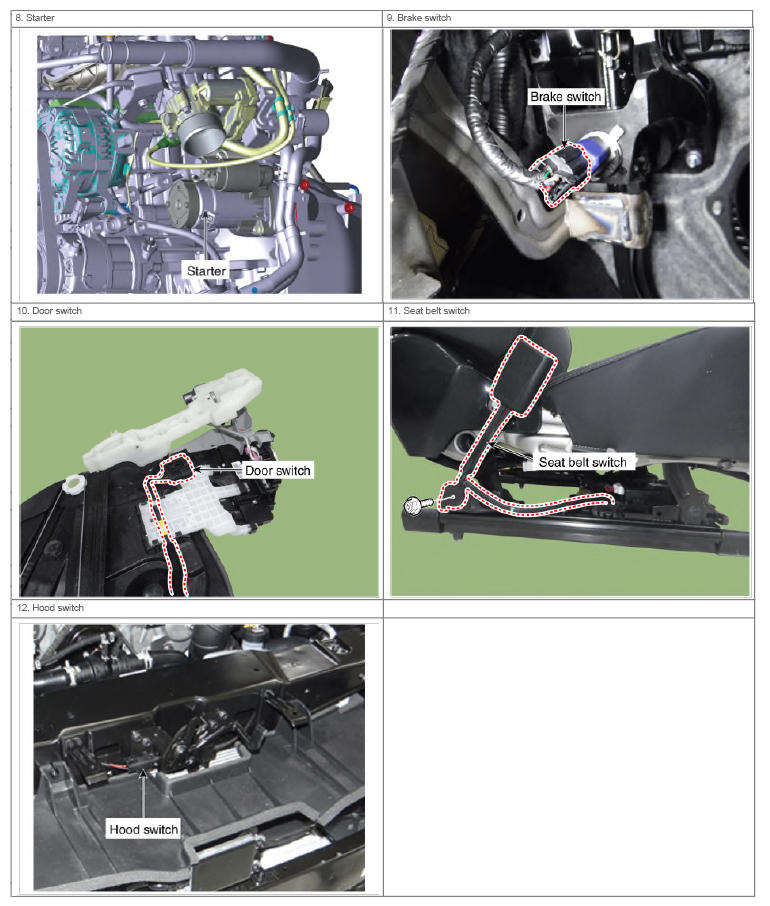

G12792418Courtesy of KIA MOTORS AMERICA, INC.
