Repair Procedures: Removal

  1. Turn the ignition switch OFF.

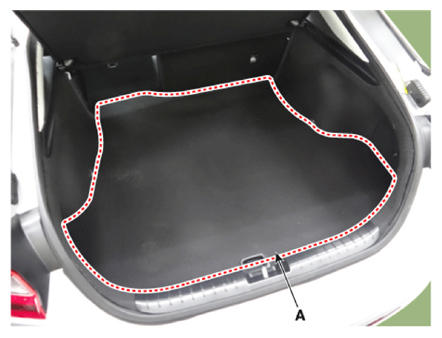

  2. Remove the luggage covering (A).
    G12792423Courtesy of KIA MOTORS AMERICA, INC.

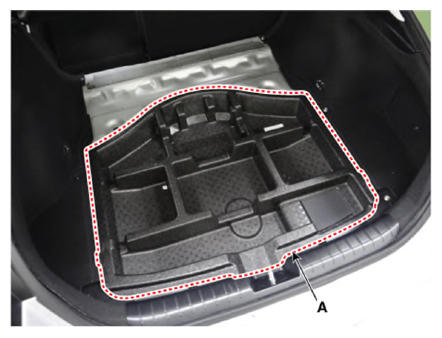

  3. Remove the luggage center tray (A).
    G12792424Courtesy of KIA MOTORS AMERICA, INC.

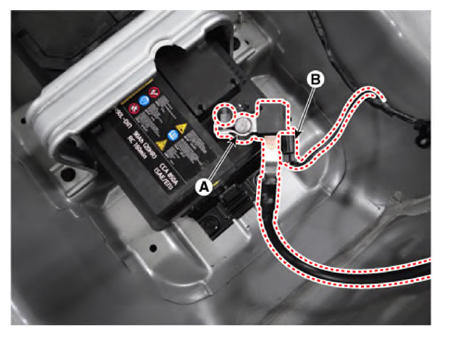

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G12792425Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the battery sensor by loosening the mounting bolts (C).
G12792426Courtesy of KIA MOTORS AMERICA, INC.
