Components And Components Location: Components

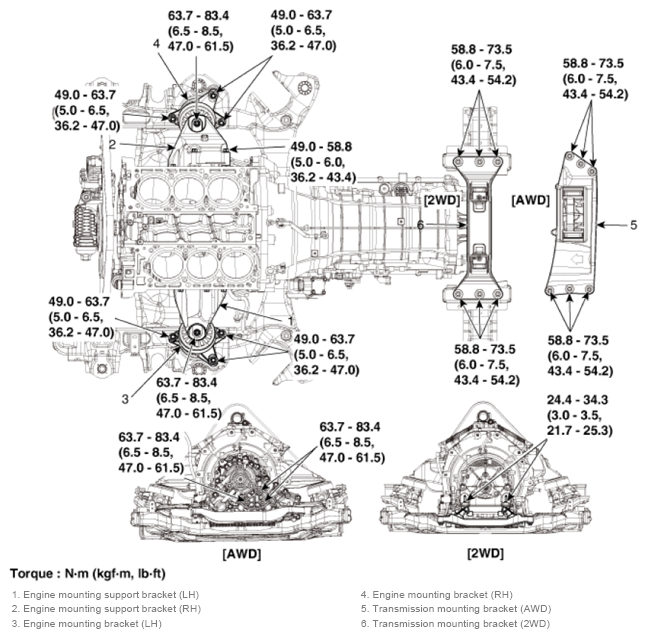

Fig 1: Engine Mounting Bolts Tightening Sequence

G12802943

Courtesy of KIA MOTORS AMERICA, INC.
